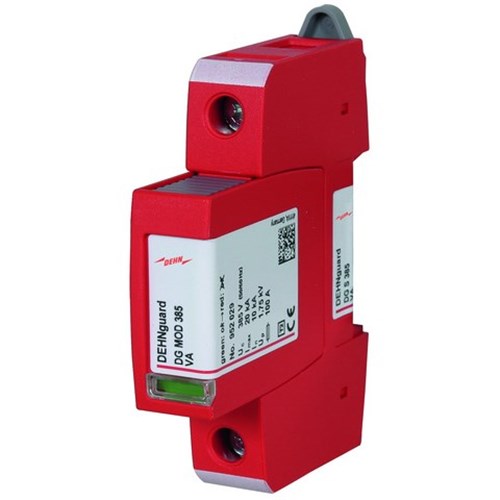

DEHN DGS385VA Surge Arrester 10kA 230V 35mm DIN Rail Mount Thermoplastic IP20

Product Code: DGS385VA

  • Protects at 230 V, 10 kA for reliable surge defense
  • Compact design with IP20 protection rating
  • Quick response time of 100 ns ensures fast action
  • Easy installation on 35 mm DIN Rail
  • Complies with EN 61643-11 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard S VA
Application
For protecting low-voltage consumer's installations against surges

Electrical

Max. Backup Fuse
100A gG
Nominal Voltage
230V AC
Voltage Protection Level Up
1750V
Max. Discharge Current Imax (8/20µs)
20kA
Short Circuit Current Rating
25kA
Nominal Discharge Current Inom (8/20µs)
10kA
No. of Poles
1P
Max. Continuous Operating Voltage
385 V AC, 500 V DC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
1

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
