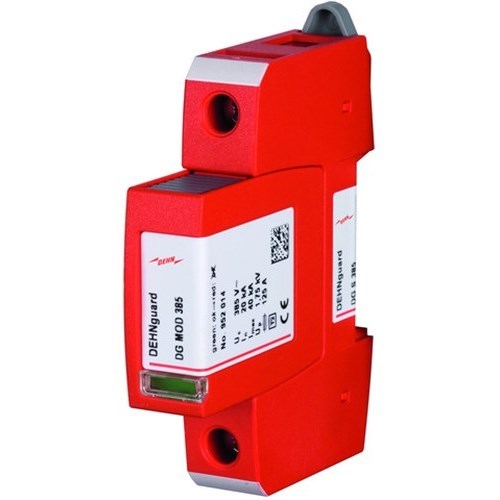

DEHN DGS385 Surge Arrester 20kA 230V 35mm DIN Rail Mount Thermoplastic IP20

Product Code: DGS385

  • Protects with 20 kA surge current capacity
  • Compact design: 18 mm width, DIN rail mount
  • Fast response time of <= 25 ns
  • Operates in extreme temps: -40 to 80°C
  • Complies with KEMA, VDE, UL, CSA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard S
Application
For protecting low-voltage consumer's installations against surges

Electrical

Max. Backup Fuse
125A gG
Nominal Voltage
230V AC
Voltage Protection Level Up
1750V
Max. Discharge Current Imax (8/20µs)
40kA
Short Circuit Current Rating
25kA
Nominal Discharge Current Inom (8/20µs)
20kA
No. of Poles
1P
Max. Continuous Operating Voltage
385 V AC, 500 V DC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
1

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
