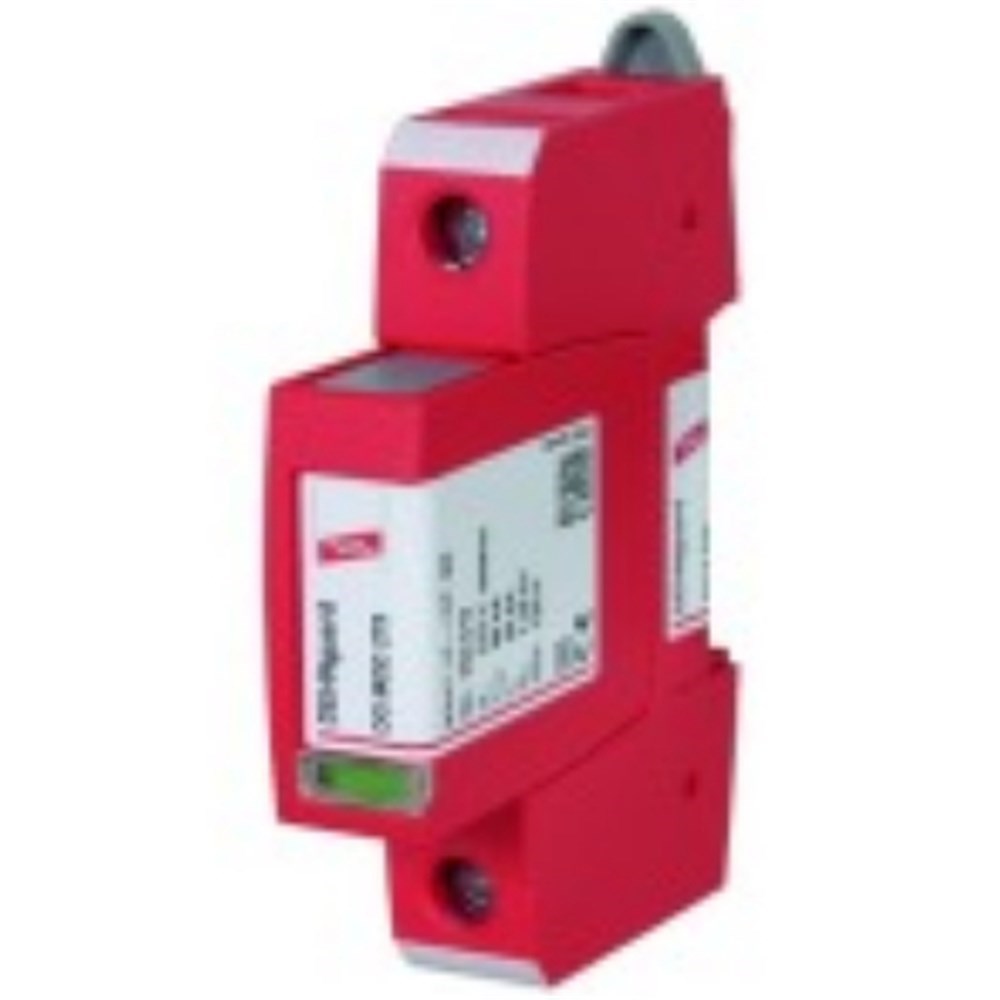

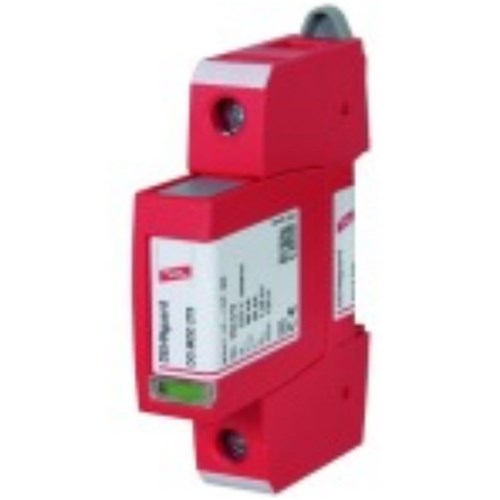

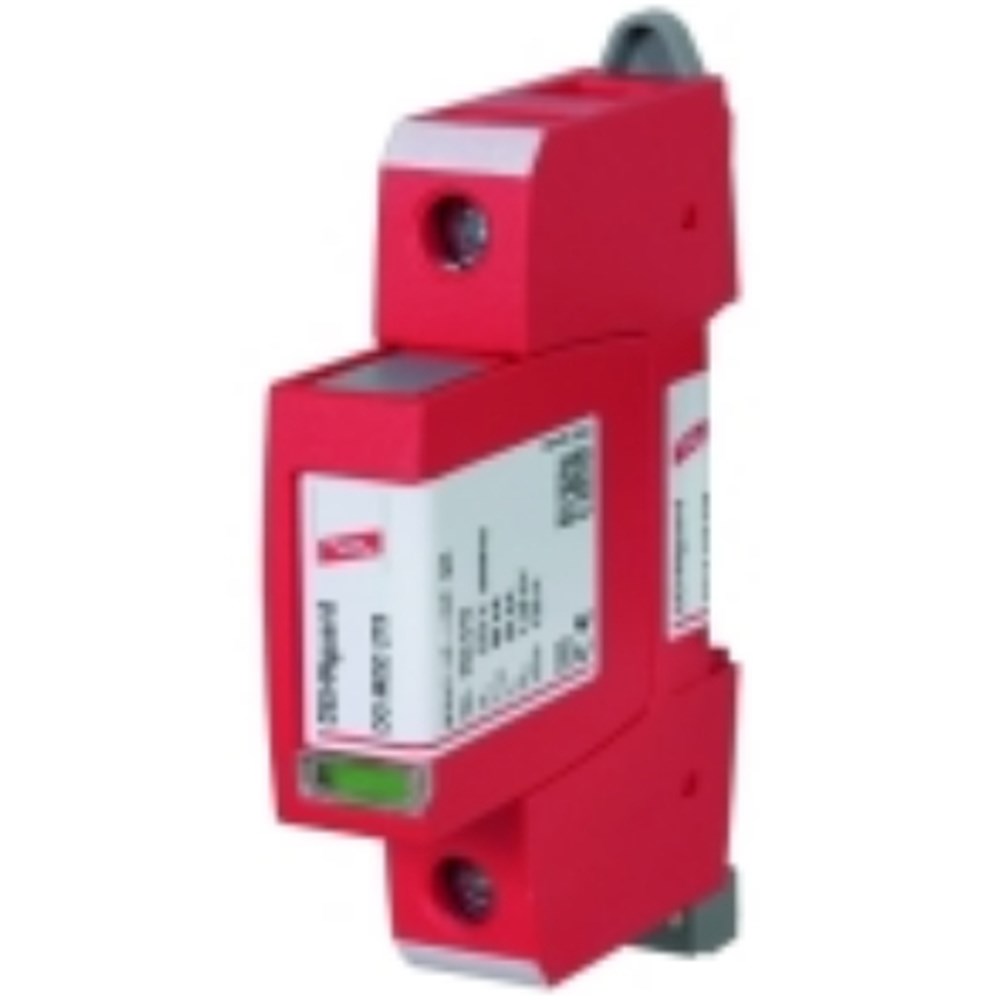

DEHN DGS275 Surge Arrester 20kA 230V 35mm DIN Rail Mount Thermoplastic IP20

Product Code: DGS275

  • Surge protection for 230 V systems
  • Handles up to 20 kA current
  • Compact size: 18 mm wide, mounts on DIN Rail
  • Fast response time of <= 25 ns
  • Meets KEMA, VDE, UL, CSA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Combined Lightning Current and Surge Arrester
Brand
DEHN
Series
DVCI FM
Application
space-saving panels / compact DBs

Electrical

Lightning Impulse Current Iimp (10/350&#181;s)
25 kA
Max. Continuous Operating Voltage (AC/DC)
255 V
No. of Poles (Total)
1
Nominal Voltage
230 V
Voltage Protection Level Up
&#8804; 1.5 kV
Nominal Discharge Current Inom (8/20&#181;s)
25 kA

Mechanical

Mounting Method
35 mm DIN rails
Terminal Size
max. 1.5 mm² solid / flexible

Dimensions

Depth
150mm
Height
73mm
Width
36mm

Environmental

Operating Temperature
-40 °C ... +80 °C
IP Rating
IP 20
