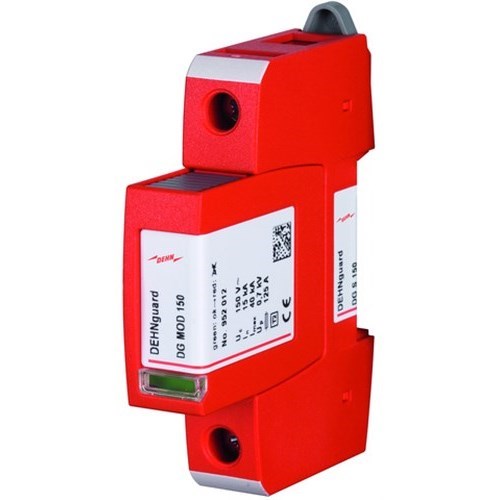

DEHN DGS150 Surge Arrester 1-P 15kA 120V 35mm DIN Rail Mount Thermoplastic IP20

Product Code: DGS150

  • Surge protection for 120V systems
  • Compact size: 18mm width, DIN rail mount
  • Fast response time: 25 ns
  • High interrupt rating of 125A
  • Meets KEMA, VDE, UL, CSA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard S
Application
For protecting low-voltage consumer's installations against surges

Electrical

Max. Backup Fuse
125A gG
Nominal Voltage
120V AC
Voltage Protection Level Up
700V
Max. Discharge Current Imax (8/20µs)
40kA
Short Circuit Current Rating
50kA
Nominal Discharge Current Inom (8/20µs)
15kA
No. of Poles
1P
Max. Continuous Operating Voltage
150 V AC, 200 V DC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
1

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
