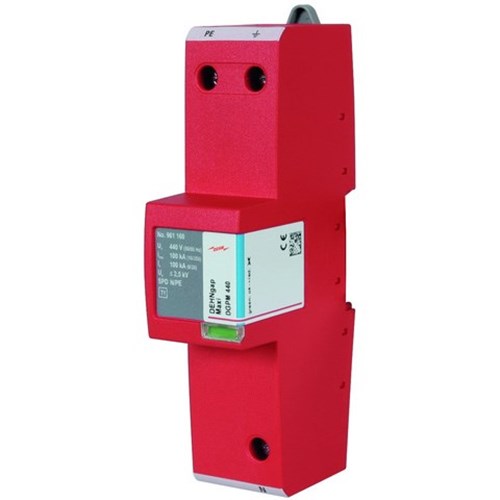

DEHN DGPM440 Lightning Arrester 100kA 440VAC 35mm DIN Rail 73mm W 36mm D 90mm H Thermoplastic IP20

Product Code: DGPM440

  • Rated for 440 VAC applications
  • IP20 protection, DIN rail mount
  • Handles lightning currents up to 100 kArms
  • Fast response time of <= 100 ns
  • Durable thermoplastic construction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Lightning Current Arrester
Brand
DEHN
Series
DEHNgap
Application
N-PE lightning current arrester for protecting low-voltage consumer's installations against surges and even direct lightning strikes, particularly for use in TT systems.

Electrical

Lightning Impulse Current Iimp (10/350µs)
100kA
Voltage Protection Level Up
2500V
No. of Poles
1P
Max. Continuous Operating Voltage
440 V AC

Mechanical

Terminal Size
10 to 50 mm2

Dimensions & Physical Data

No. of Modules Width
2

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
