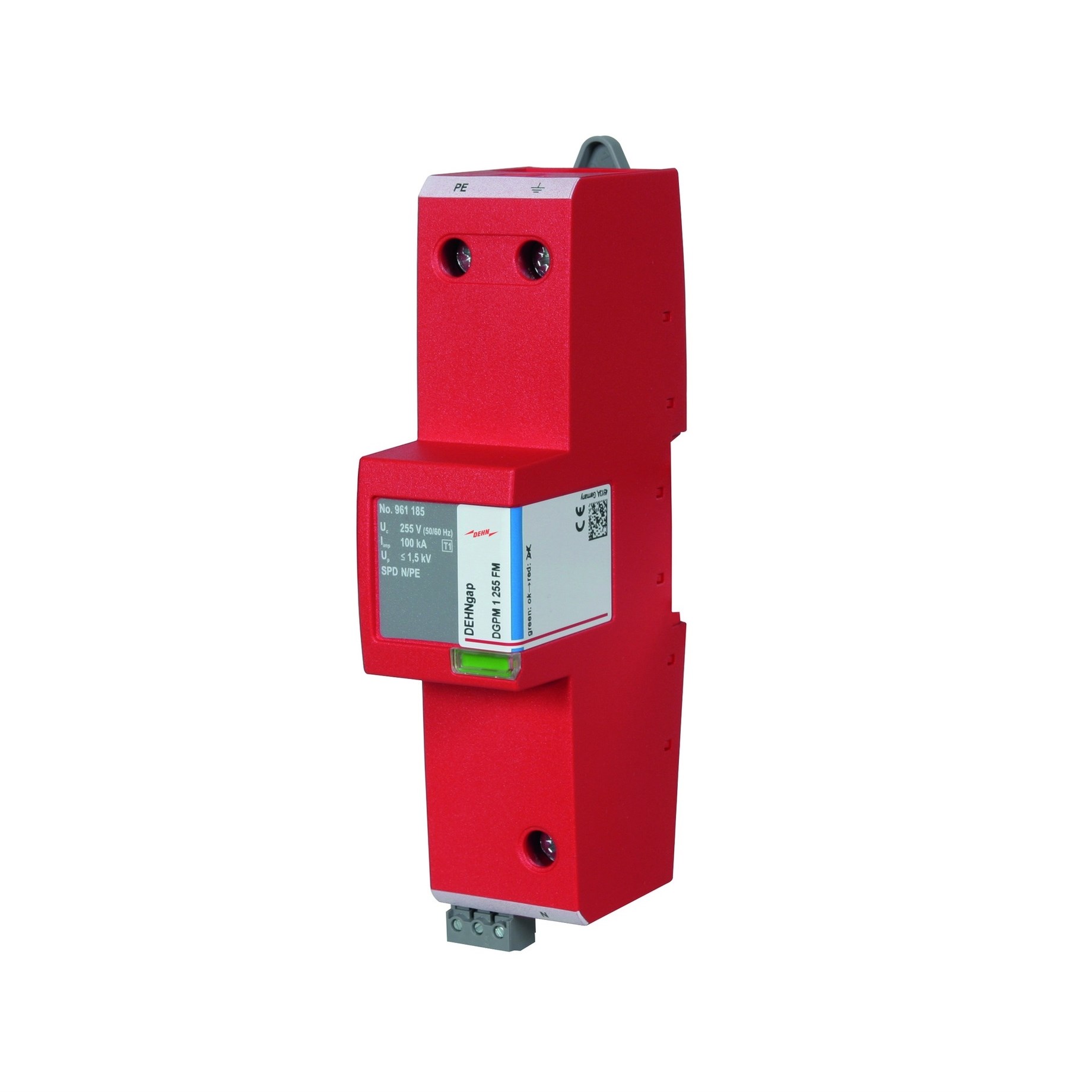

DEHN DGPM1255FM Lightning Current Arrester 100kA 255VAC 35mm DIN Rail 36mm W 66mm D 150mm H Thermoplastic IP20

Product Code: DGPM1255FM

  • Rated for 255 VAC, suitable for TT systems
  • Compact design: 36mm width, IP20 protection
  • Fast response time <=100 ns
  • Handles up to 100 kArms lightning current
  • Mounts on 35 mm DIN rail
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Lightning Current Arrester
Brand
DEHN
Series
DEHNgap
Application
N-PE lightning current arrester for protecting low-voltage consumer's installations against surges and even direct lightning strikes, particularly for use in TT systems.

Electrical

Lightning Impulse Current Iimp (10/350µs)
100kA
Voltage Protection Level Up
1500V
Alarm Contact
Changeover contact
No. of Poles
1P
Max. Continuous Operating Voltage
255 V AC

Mechanical

Terminal Size
10 to 50 mm2

Dimensions & Physical Data

No. of Modules Width
2

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
