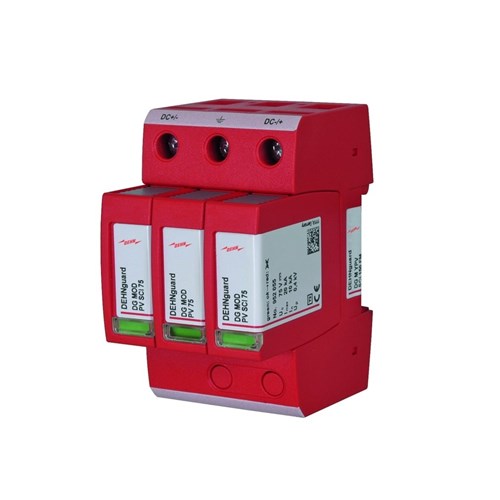

DEHN DGMYPVSCI150FM Type-2 Surge Arrester 20kA 35mm DIN Rail Thermoplastic IP20

Product Code: DGMYPVSCI150FM

  • Surge protection for PV systems
  • Fast response time 25 ns
  • Compact design: 54x90x66 mm
  • Easy DIN rail mounting
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard modular (Y)PV SCI
Application
Modular multipole surge arrester with three-step d.c. switching device for use in PV systems; with remote signalling contact (floating changeover contact).

Electrical

Voltage Protection Level Up
<= 0.8kV
Max. Discharge Current Imax (8/20µs)
20kA
Short Circuit Current Rating
10kA
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
150 V

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
3

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
