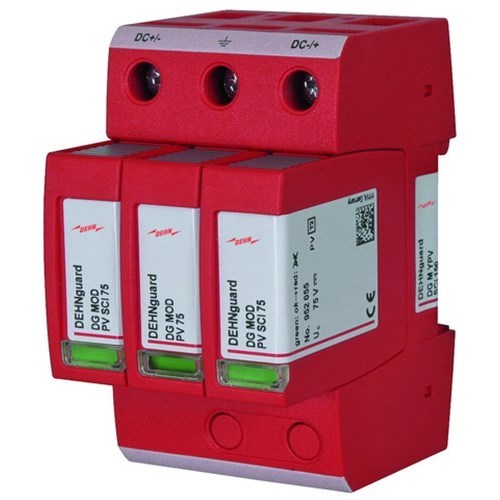

DEHN DGMYPVSCI150 Surge Arrester 20kA 150VDC 35mm DIN Rail Thermoplastic IP20

Product Code: DGMYPVSCI150

  • Surge protection for 150 VDC systems
  • Handles up to 20 kA current
  • Compact DIN rail mount, IP20 rated
  • Fast response time of <= 25 ns
  • Complies with KEMA, UL, CSA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard modular (Y)PV SCI
Application
Modular multipole surge arrester with three-step d.c. switching device for use in PV systems.

Electrical

Voltage Protection Level Up
<= 0.8kV
Max. Discharge Current Imax (8/20µs)
20kA
Short Circuit Current Rating
10kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
150 V

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
3

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
