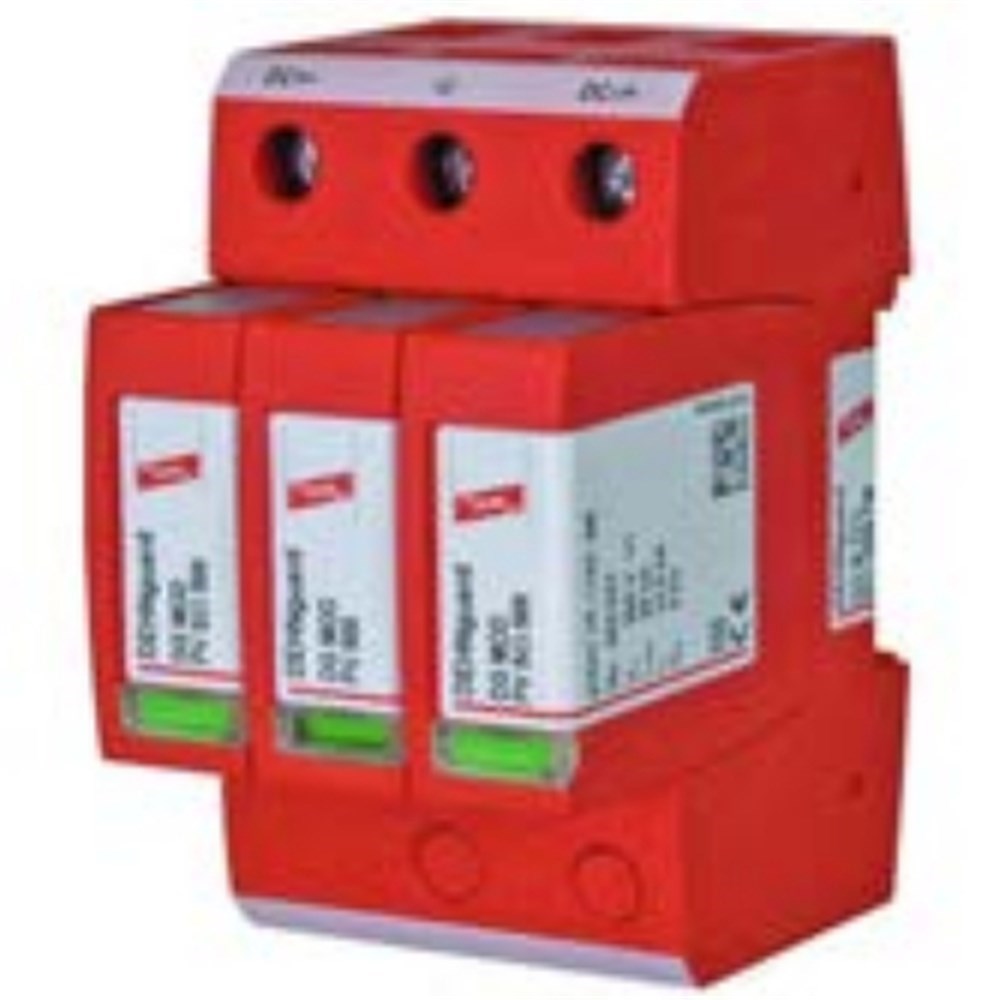

DEHN DGMYPV1500FM Type-2 Surge Arrester 40kA 35mm DIN Rail Thermoplastic IP20

Product Code: DGMYPV1500FM

  • Surge protection up to 40 kA
  • Compact 54 mm width design
  • Quick response time <= 25 ns
  • Suitable for PV systems
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard modular YPV FM
Application
Mehrpoliger, modularer Überspannungs-Ableiter für PV-Anlagen mit Fernmeldekontakt für Überwachungseinrichtung (potentialfreier Wechsler).

Electrical

Voltage Protection Level Up
<= 5kV
Max. Discharge Current Imax (8/20µs)
40kA
Short Circuit Current Rating
10kA
Alarm Contact
Wechsler
Nominal Discharge Current Inom (8/20µs)
15kA
Max. Continuous Operating Voltage
1500 V

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
3

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
