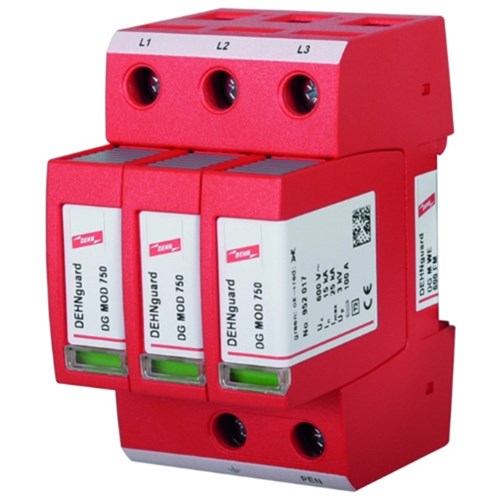

DEHN DGMWE600FM M-Surge Arrester 15kA 480V 35mm DIN Rail Mount Thermoplastic IP20

Product Code: DGMWE600FM

  • Protects up to 480 V & 15 kA
  • Quick response time of 25 ns
  • Easy DIN rail mounting (35 mm)
  • Compact size: 54x90x66 mm
  • Complies with KEMA, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Combined Lightning Current and Surge Arrester
Brand
DEHN
Series
DVA CSP FM
Application
single-phase AC circuits

Electrical

Lightning Impulse Current Iimp (10/350µs)
25 kA
Max. Backup Fuse
315 A gG
Max. Continuous Operating Voltage (AC/DC)
264 V
Nominal Voltage
230 V
Voltage Protection Level Up
≤ 1.5 kV
Nominal Discharge Current Inom (8/20µs)
25 / 100 kA

Mechanical

Mounting Method
35 mm DIN rails
Terminal Size
max. 1.5 mm² solid / flexible

Dimensions

Depth
90mm
Height
73mm
Width
36mm

Environmental

Operating Temperature
-40 °C ... +80 °C
IP Rating
IP 20
