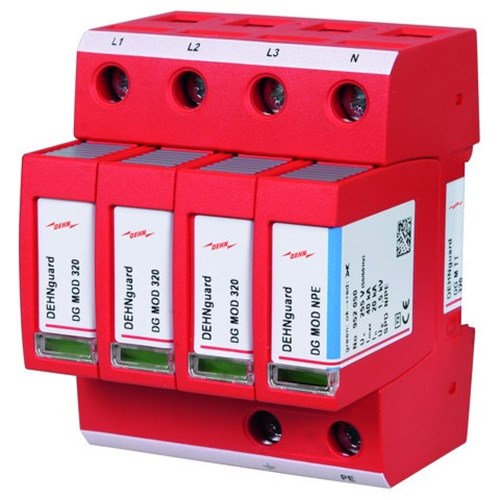

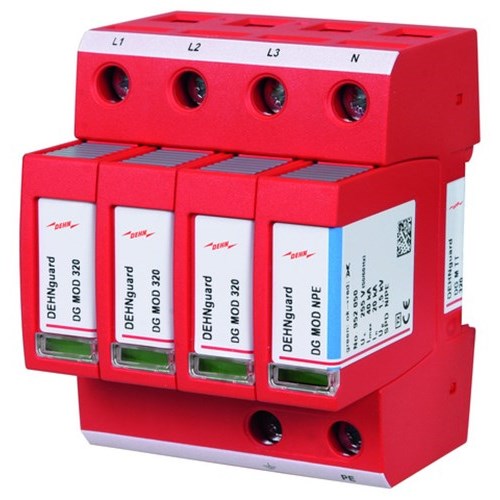

DEHN DGMTT320 Surge Arrester With Non-Metro Guard 4-P 20kA 230/400V 35mm DIN Rail IP20

Product Code: DGMTT320

  • Protects at 230/400 V, 20 kA current
  • IP20 rating for reliable protection
  • Quick response time <= 25 ns (L-N)
  • Easy DIN Rail mounting, 72 mm width
  • KEMA approved for safety standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard modular
Application
For protecting low-voltage consumer's installations against surges

Electrical

Max. Backup Fuse
125A gG
Nominal Voltage
230V AC, 400V AC
Voltage Protection Level Up
1500V
Max. Discharge Current Imax (8/20µs)
40kA
Short Circuit Current Rating
25kA
Nominal Discharge Current Inom (8/20µs)
20kA
No. of Poles
4P
Max. Continuous Operating Voltage
255 V AC, 320 V AC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
4

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
