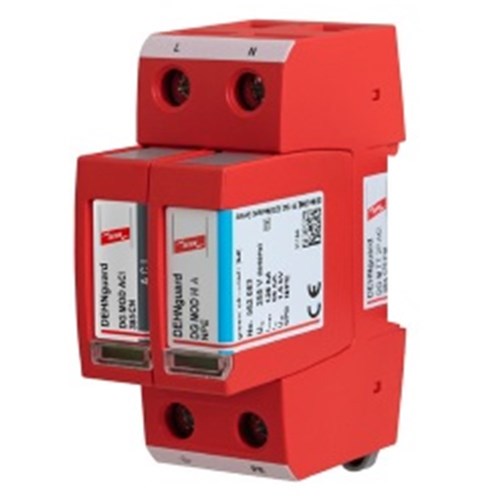

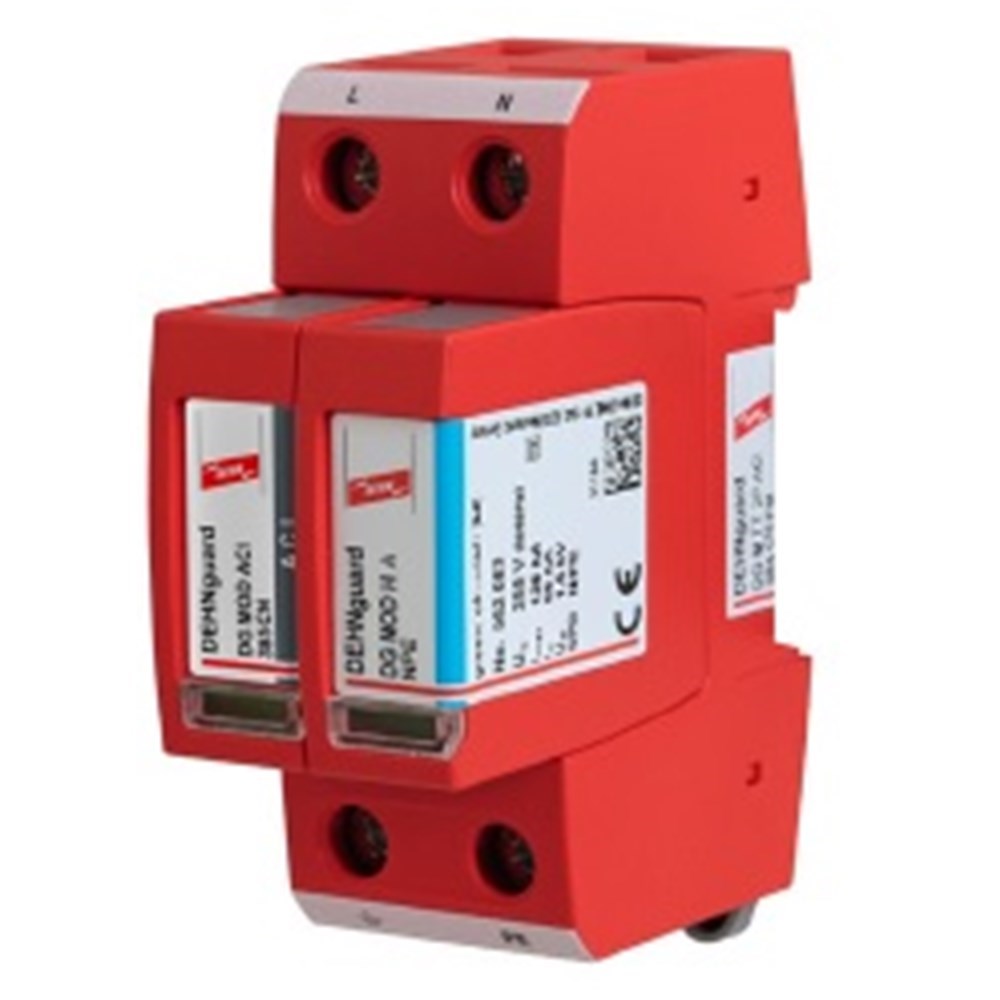

DEHN DGMTT2PACI275FM Type-2 Surge Arrester With ACI Technology 2-P 20kA 80kA 230V 35mm DIN Rail IP20

Product Code: DGMTT2PACI275FM

  • Surge protection up to 80 kA
  • Compact size: 36x90x70 mm
  • Quick response time 100 ns
  • Easy DIN Rail mounting
  • Operates from -40 to 80°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard modular with Advanced Circuit Interruption (Safe Dimensioning)
Application
For protecting low-voltage consumer installations against surges

Electrical

Max. Backup Fuse
Not required
Nominal Voltage
230V AC
Voltage Protection Level Up
1500V
Short Circuit Current Rating
25kA
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
20kA, 80kA
No. of Poles
2P
Max. Continuous Operating Voltage
255 V AC, 275 V AC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
2

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
