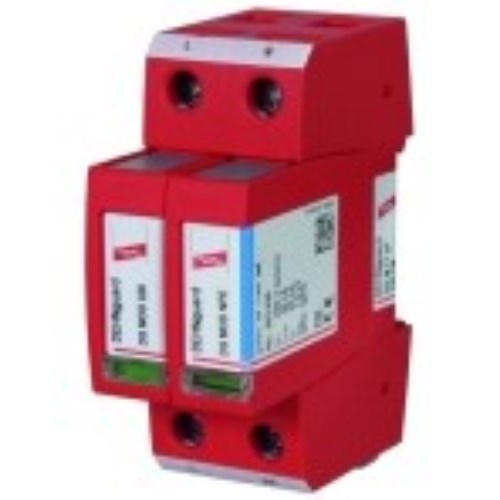

DEHN DGMTT2P275FM Surge Arrester 20kA 230V 35mm DIN Rail Mount Thermoplastic IP20

Product Code: DGMTT2P275FM

  • Rated for 230 V, 20 kA for robust protection
  • IP20 rated, suitable for indoor use
  • Compact design: 36x90x66 mm, mounts on 35 mm DIN rail
  • Operates in extreme temps: -40 to 80°C
  • Fast response time: <=25 ns (L-N), <=100 ns (N-PE)
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard modular
Application
For protecting low-voltage consumer's installations against surges

Electrical

Max. Backup Fuse
125A gG
Nominal Voltage
230V AC
Voltage Protection Level Up
1500V
Max. Discharge Current Imax (8/20µs)
40kA
Short Circuit Current Rating
50kA
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
20kA
No. of Poles
2P
Max. Continuous Operating Voltage
255 V AC, 275 V AC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
2

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
