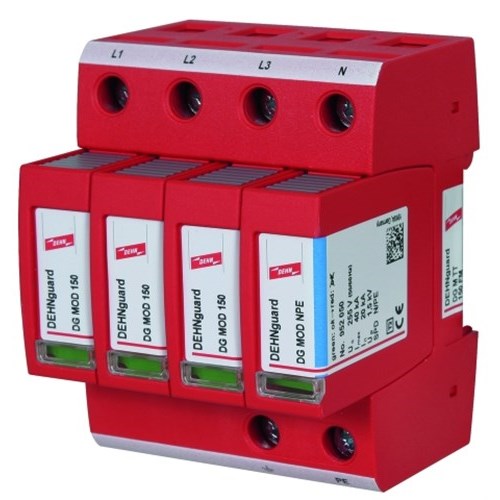

DEHN DGMTT150FM Surge Arrester 4-P 15kA 120/240V 35mm DIN Rail Thermoplastic IP20

Product Code: DGMTT150FM

  • Surge protection for 120/240 V systems
  • Quick response time: <= 25 ns (L-N)
  • Compact DIN rail mount design
  • High interrupt rating of 125 A
  • Durable thermoplastic construction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard modular
Application
For protecting low-voltage consumer's installations against surges

Electrical

Max. Backup Fuse
125A gG
Nominal Voltage
120V AC, 240V AC
Voltage Protection Level Up
0.7kV, 1.5kV
Max. Discharge Current Imax (8/20µs)
40kA
Short Circuit Current Rating
50kA
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
15kA
No. of Poles
4P
Max. Continuous Operating Voltage
150 V AC, 255 V AC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
4

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
