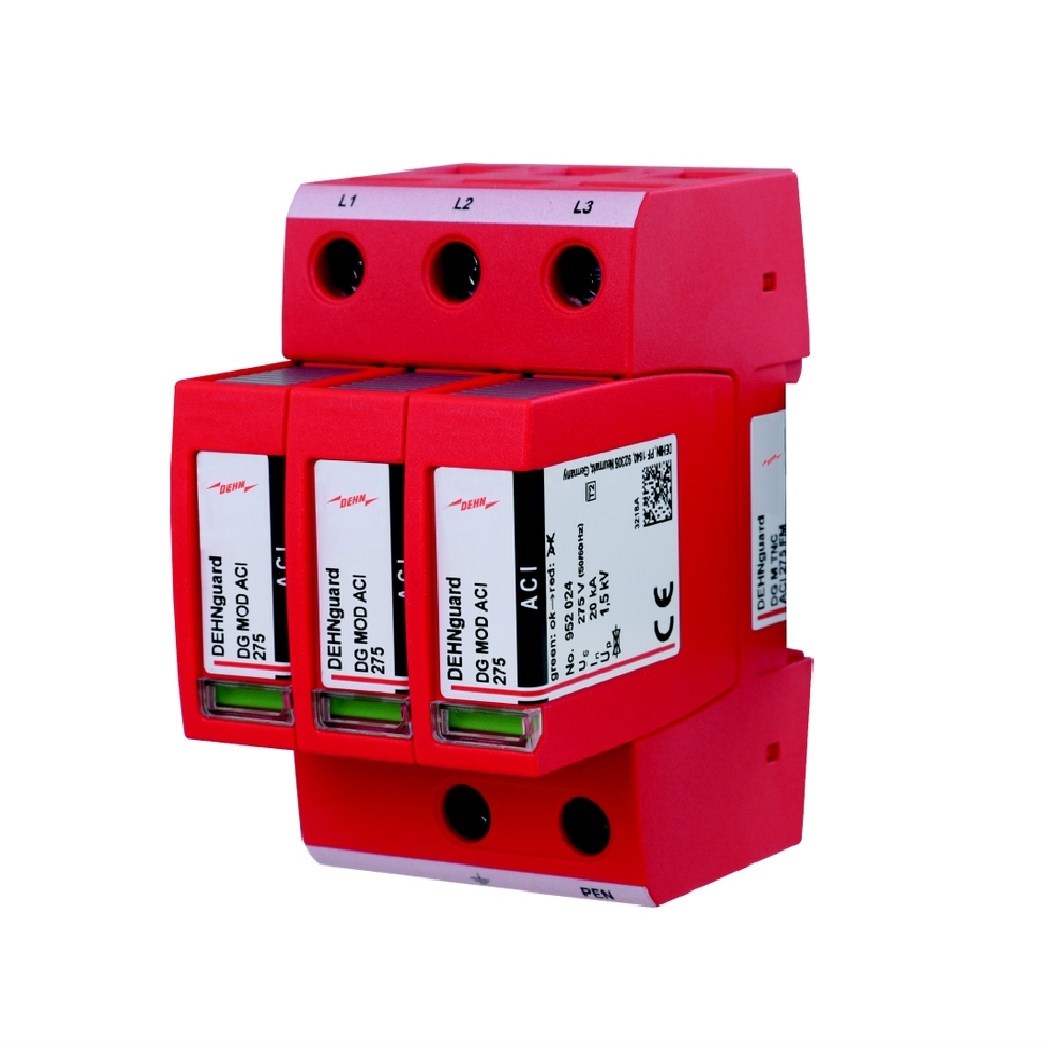

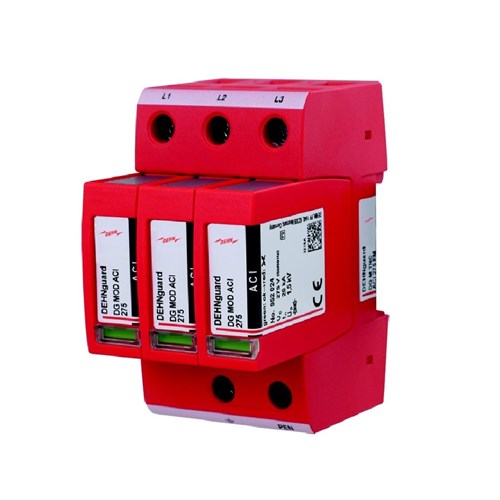

DEHN DGMTNCACI275FM Type-2 M-Surge Arrester 3-P 20kA 230/400V 35mm DIN Rail Thermoplastic IP20

Product Code: DGMTNCACI275FM

  • Designed for 230/400 V systems
  • Handles surges up to 20 kA
  • Quick response time <= 100 ns
  • IP20 protection, DIN rail mountable
  • KEMA approved for safety and reliability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard modular with Advanced Circuit Interruption (Safe Dimensioning)
Application
For protecting low-voltage consumer installations against surges

Electrical

Max. Backup Fuse
Not required
Nominal Voltage
230V AC, 400V AC
Voltage Protection Level Up
1500V
Short Circuit Current Rating
25kA
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
20kA
No. of Poles
3P
Max. Continuous Operating Voltage
275 V AC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
3

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
