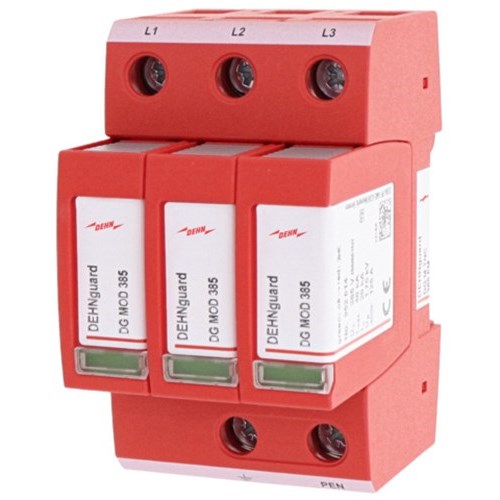

DEHN DGMTNC385FM M-Surge Arrester 20kA 230/400V 35mm DIN Rail Thermoplastic IP20

Product Code: DGMTNC385FM

  • Surge protection for 230/400 V systems
  • Handles up to 20 kA current
  • Quick response time of <= 25 ns
  • Compact, fits on 35 mm DIN rail
  • IP20 rated thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard modular
Application
For protecting low-voltage consumer's installations against surges

Electrical

Max. Backup Fuse
125A gG
Nominal Voltage
230V AC, 400V AC
Voltage Protection Level Up
1750V
Max. Discharge Current Imax (8/20µs)
40kA
Short Circuit Current Rating
25kA
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
20kA
No. of Poles
3P
Max. Continuous Operating Voltage
385 V AC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
3

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
