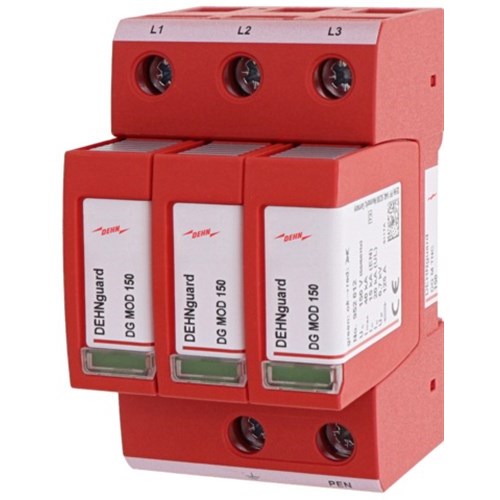

DEHN DGMTNC150 Type-2 M-Surge Arrester With TNS System Guard 3-P 15kA 120/240V 35mm DIN Rail IP20

Product Code: DGMTNC150

  • Surge protection for 120/240 V systems
  • Fast response time of <= 25 ns
  • Easy DIN rail mounting, 35 mm
  • Operates in -40 to 80°C range
  • Complies with KEMA and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard modular
Application
For protecting low-voltage consumer's installations against surges

Electrical

Max. Backup Fuse
125A gG
Nominal Voltage
120V AC, 240V AC
Voltage Protection Level Up
700V
Max. Discharge Current Imax (8/20µs)
40kA
Short Circuit Current Rating
50kA
Nominal Discharge Current Inom (8/20µs)
15kA
No. of Poles
3P
Max. Continuous Operating Voltage
150 V AC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
3

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
