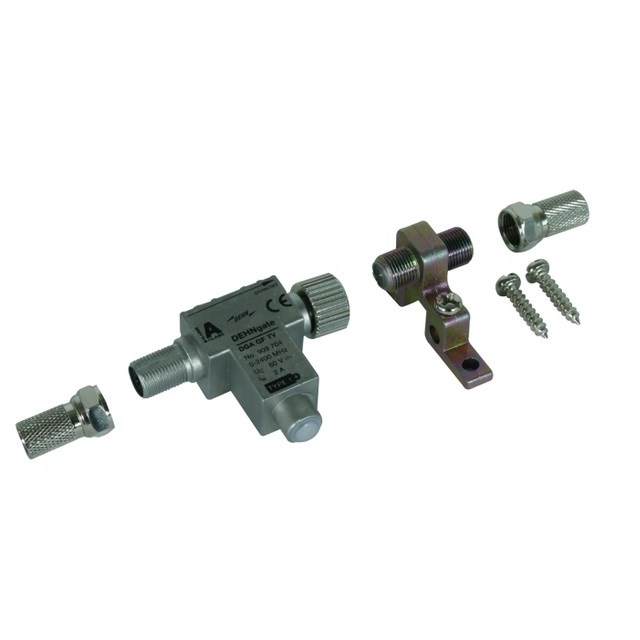

DEHN DGAGFTV Surge Arrester 2.5kA 2A 60VDC F-Socket F-Plug Metal Bare Surface IP30

Product Code: DGAGFTV

  • Surge protection for 60 VDC systems
  • Compact size with 49 mm height
  • Operates in extreme temps: -40 to 80°C
  • IP30 rated for indoor use
  • Supports F-Socket and F-Plug connections
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Lightning Current Arrester
Brand
DEHN
Series
DEHNgate
Application
For coaxial 75-ohm TV and SAT systems, tested to EN 61643-21, energy-coordinated with surge arrester DGA FF TV, suitable for remote supply, earthing via earthing block, earthing block and two F-connectors included

Electrical

Lightning Impulse Current Iimp (10/350µs)
2.5 kA
Nominal Current (In)
2:00 AM
Voltage Protection Level Up
600 V
Nominal Discharge Current Inom (8/20µs)
10 kA
Max. Continuous Operating Voltage
60 V DC

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP30

Documents

IPD Product Catalogue V17
