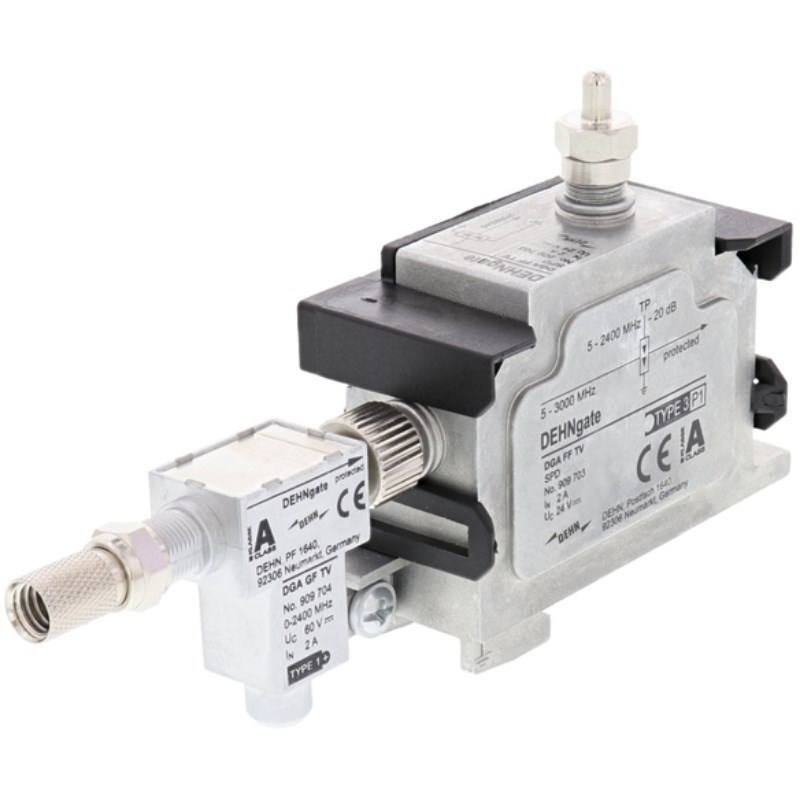

DEHN DGAGFFTV Surge Arrester 2.5kA 2A 24VDC 35mm DIN Rail Metal Bare Surface IP30

Product Code: DGAGFFTV

  • Rated for 24 VDC, 2 A
  • IP30 protection rating
  • Fits on 35 mm DIN Rail
  • Operates from -40 to 80°C
  • Compliant with IEC/EN 61643-21 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Arrester
Brand
DEHN
Series
DEHNgate
Application
With integrated measuring / test output for coaxial 75-ohm TV and SAT systems, tested to EN 61643-21 and energy-coordinated acc. to 61643-22, suitable for remote supply, wall-mounted adapter and two F-connectors included

Electrical

Lightning Impulse Current Iimp (10/350µs)
2.5 kA
Nominal Current (In)
2:00 AM
Voltage Protection Level Up
60 V
Nominal Discharge Current Inom (8/20µs)
10 kA
Max. Continuous Operating Voltage
24 V DC

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP30
