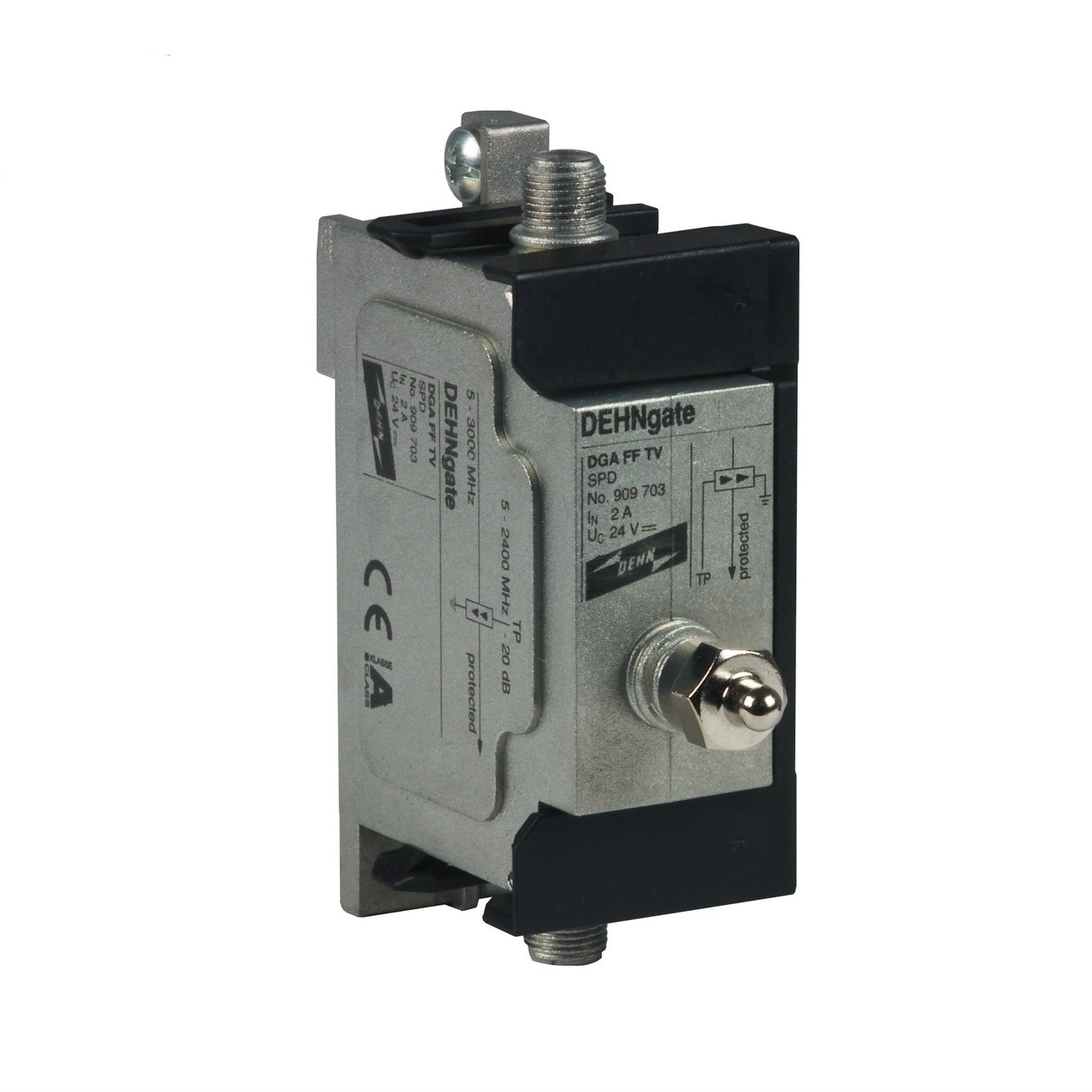

DEHN DGAFFTV Surge Arrester 0.2kA 2A 24VDC 35mm DIN Rail Metal Bare Surface IP30

Product Code: DGAFFTV

  • 24 VDC surge protection for sensitive equipment
  • Compact size: 27mm wide, fits 35mm DIN rail
  • Operates in extreme temps: -40 to 80°C
  • Compliant with IEC and EN 61643-21 standards
  • Metal construction ensures durability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNgate
Application
With integrated measuring / test output for coaxial 75-ohm TV and SAT systems, tested to EN 61643-21, energy-coordinated with DGA GF TV lightning current arrester, suitable for remote supply, wall-mounted adapter and two F-connectors included

Electrical

Lightning Impulse Current Iimp (10/350µs)
0.2 kA
Nominal Current (In)
2:00 AM
Voltage Protection Level Up
60 V
Nominal Discharge Current Inom (8/20µs)
1.5 kA
Max. Continuous Operating Voltage
24 V DC

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP30

Documents

IPD Product Catalogue V17
