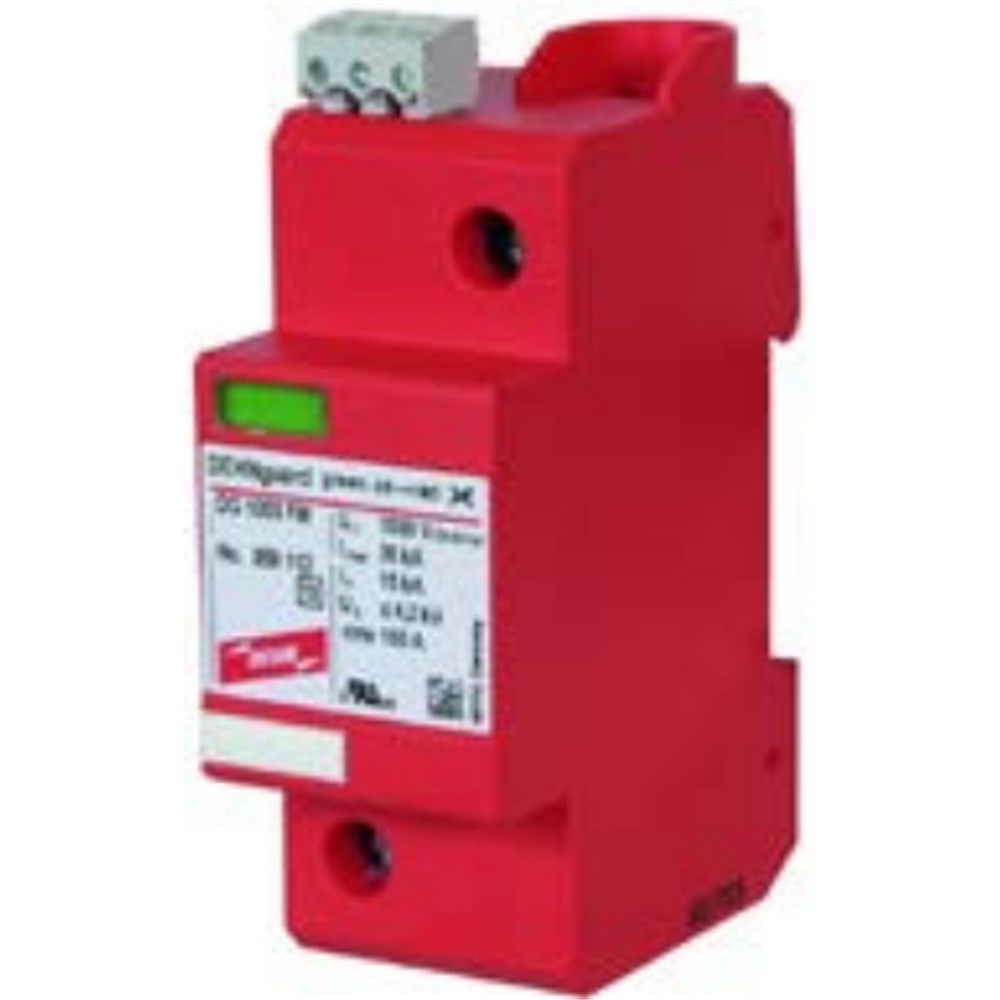

DEHN DG1000FM Type-2 Surge Arrester 1-P 15kA 830VAC 35mm DIN Rail Thermoplastic IP20

Product Code: DG1000FM

  • Surge protection up to 830 VAC
  • Compact design: 36x103x65 mm
  • Quick response time: <= 25 ns
  • Easy DIN rail mounting (35 mm)
  • Operates in -40 to 80°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNguard 1000
Application
For protecting low-voltage consumer's installations against surges

Electrical

Max. Backup Fuse
100A aM
Nominal Voltage
830V AC
Voltage Protection Level Up
4200V
Max. Discharge Current Imax (8/20µs)
30kA
Short Circuit Current Rating
25kA
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
15kA
No. of Poles
1P
Max. Continuous Operating Voltage
1000 V AC, 1000 V DC

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
2

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
