Products

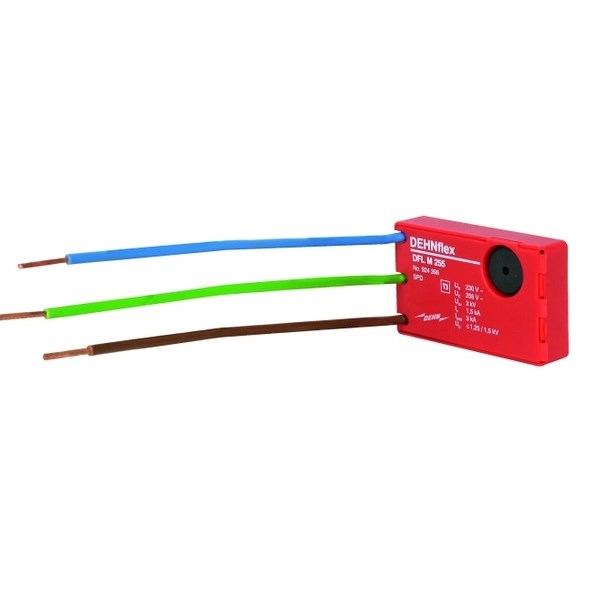

DEHN DFLM255 Surge Arrester 1.5kA 230VAC Thermoplastic Red IP20

Product Code: DFLM255

  • Surge protection for 230 VAC systems
  • Compact design: 50x30x124 mm
  • Quick response time: <= 25 ns
  • Durable thermoplastic construction
  • IP20-rated for indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNflex
Application
For all installation systems of 230 V terminal equipment

Electrical

Max. Backup Fuse
B 16A
Nominal Voltage
230V AC
Voltage Protection Level Up
1250V, 1500V
Short Circuit Current Rating
1kA
Nominal Discharge Current Inom (8/20µs)
1.5kA
No. of Poles
2P
Max. Continuous Operating Voltage
255 V AC

Dimensions & Physical Data

Depth
11mm
Height
50mm
Width
30mm

Environmental

Operating Temperature
-25°C to 40°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
