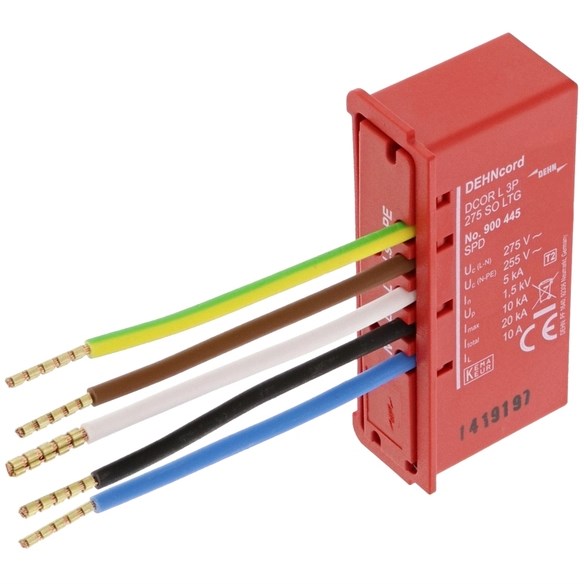

DEHN DCORL3P275SOLTG Type-2 Surge Arrester 5kA 230VAC Thermoplastic IP20

Product Code: DCORL3P275SOLTG

  • Rated for 230 VAC, 5 kA surge current
  • Compact size: 67x30.3x19.4 mm
  • Fast response time: <= 25 ns
  • Operates in -40 to 80°C range
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNcord
Application
For protecting low-voltage consumer installations against surges

Electrical

Max. Backup Fuse
B 16A
Nominal Voltage
230V AC
Voltage Protection Level Up
1500V
Max. Discharge Current Imax (8/20µs)
10kA
Short Circuit Current Rating
1kA
Nominal Discharge Current Inom (8/20µs)
5kA
No. of Poles
3P
Max. Continuous Operating Voltage
255 V AC, 275 V AC

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
