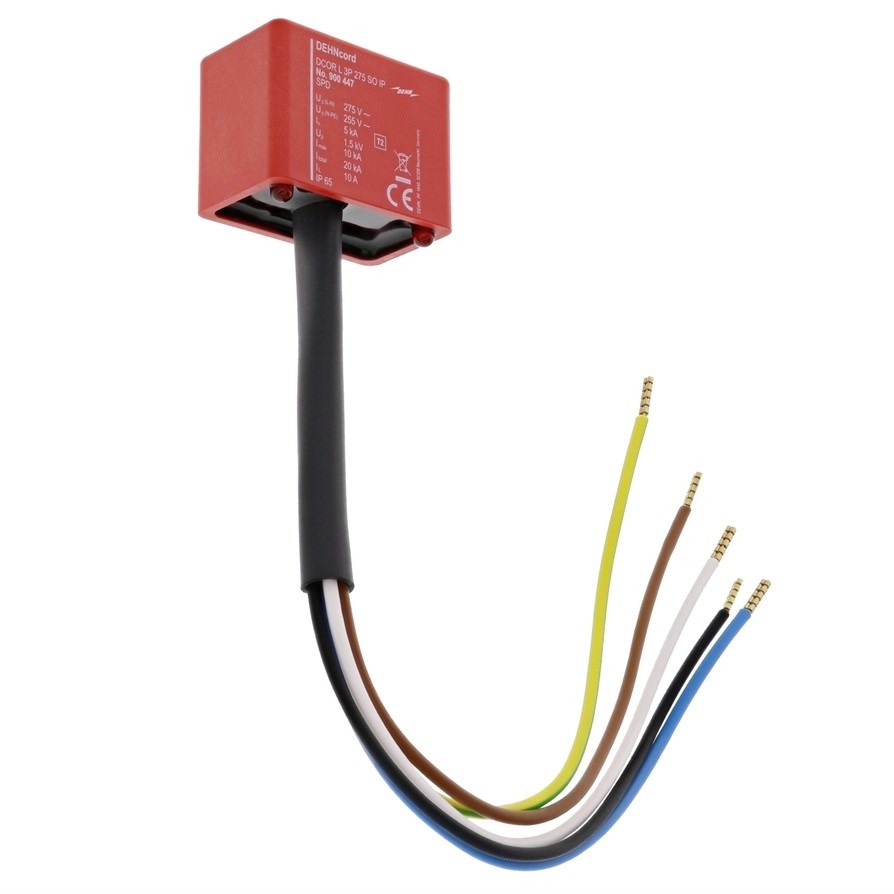

DEHN DCORL3P275SOIP Type-2 Surge Arrester With Connecting Cable 5kA 230VAC Thermoplastic IP65

Product Code: DCORL3P275SOIP

  • Surge protection for 230 VAC systems
  • Rated current capacity of 5 kA
  • IP65 for robust environmental protection
  • Fast response time: <= 25 ns, <= 100 ns (L/N-PE)
  • Compact size: 49 mm width, 50 mm height
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNcord
Application
For protecting low-voltage consumer installations against surges

Electrical

Max. Backup Fuse
B 16A
Nominal Voltage
230V AC
Voltage Protection Level Up
1500V
Max. Discharge Current Imax (8/20µs)
10kA
Short Circuit Current Rating
1kA
Nominal Discharge Current Inom (8/20µs)
5kA
No. of Poles
3P
Max. Continuous Operating Voltage
255 V AC, 275 V AC

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP65
