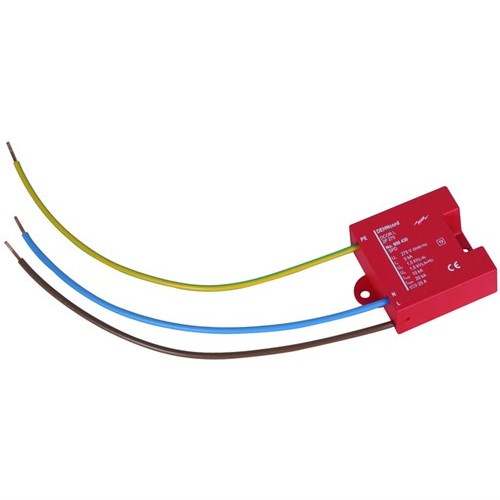

DEHN DCORL2P320 Surge Arrester 2-P 5kA 230/277VAC Thermoplastic IP20

Product Code: DCORL2P320

  • Suitable for 230/277 VAC systems
  • Fast response time, <= 25 ns
  • Compact design: 49 mm width
  • Operates in -40 to 80°C range
  • KEMA approved for reliability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNcord
Application
For protecting low-voltage consumer installations against surges

Electrical

Max. Backup Fuse
25A gG
Nominal Voltage
230V AC, 277V AC
Voltage Protection Level Up
1.5kV, 1.75kV
Max. Discharge Current Imax (8/20µs)
10kA
Short Circuit Current Rating
25kA
Nominal Discharge Current Inom (8/20µs)
5kA
No. of Poles
2P
Max. Continuous Operating Voltage
255 V AC, 320 V AC

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
