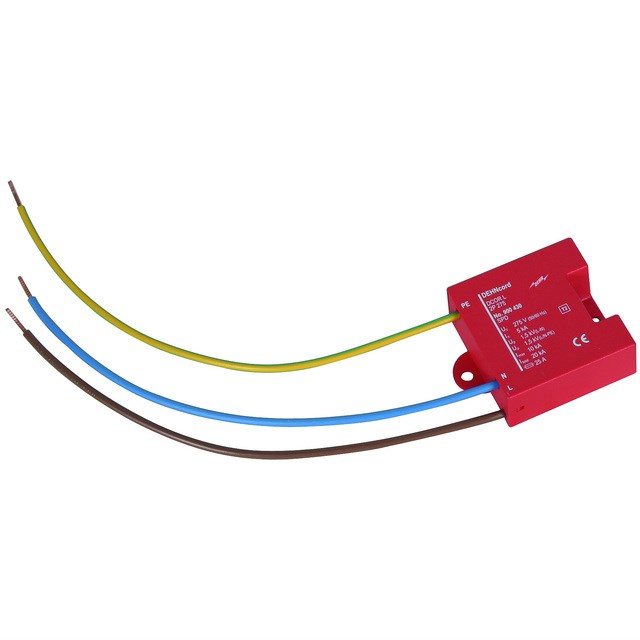

DEHN DCORL2P275 Surge Arrester 2-P 5kA 230VAC Thermoplastic Red IP20

Product Code: DCORL2P275

  • Surge protection for 230 VAC systems
  • Compact design: 49x50x20.6 mm
  • Fast response time <= 25 ns
  • Operates in -40 to 80°C range
  • KEMA approved quality
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNcord
Application
For protecting low-voltage consumer installations against surges

Electrical

Max. Backup Fuse
25A gG
Nominal Voltage
230V AC
Voltage Protection Level Up
1500V
Max. Discharge Current Imax (8/20µs)
10kA
Short Circuit Current Rating
25kA
Nominal Discharge Current Inom (8/20µs)
5kA
No. of Poles
2P
Max. Continuous Operating Voltage
255 V AC, 275 V AC

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
