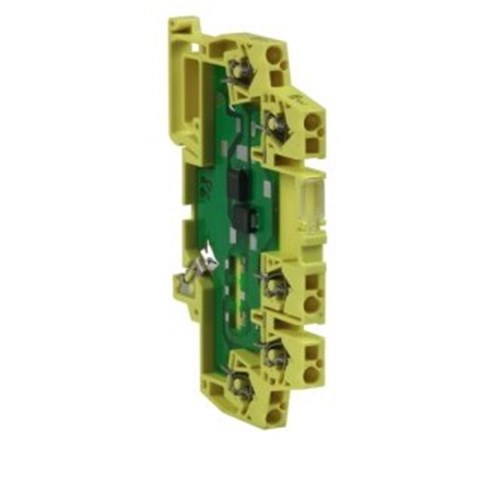

DEHN DCORKD524 Surge Protective Block 10A 24V Spring Clamp 35mm DIN Rail Polyamide Yellow IP20

Product Code: DCORKD524

  • Rated for 24V and 10A, ensuring reliable performance.
  • Spring clamp connection for secure, easy installation.
  • Compact design: 6mm width fits on standard DIN rail.
  • Operates in extreme temps from -40 to 80°C.
  • Complies with IEC/EN 61643-21 standards.
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Protector
Brand
DEHN
Series
DEHNconnect RK
Application
Surge protective device with efficient diodes between the signal lines for SIEMENS-SPS S7-300 digital output modules (laboratory tested). The terminal allows increased EMC protection. No connection to PG.

Electrical

Nominal Voltage
+24V DC, -5V DC
Voltage Protection Level Up
45V
Nominal Discharge Current Inom (8/20µs)
0.3kA
Max. Continuous Operating Voltage
+30 V DC, -6 V DC

Mechanical

Terminal Size
0.08 to 2.5 mm2

Dimensions & Physical Data

Depth
57mm
Height
92mm
Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP00, with cover IP20
