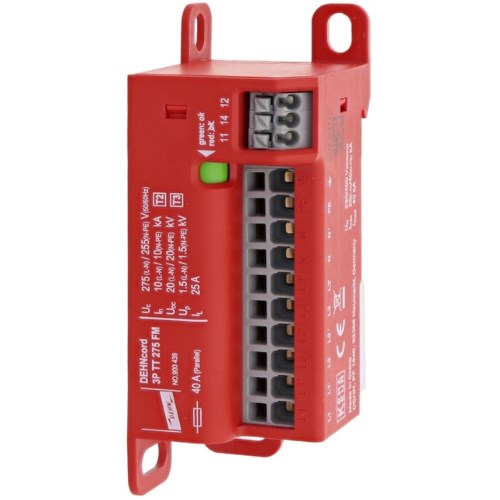

DEHN DCOR3PTT275FM Surge Arrester 3 PH 25A 230V Thermoplastic IP20

Product Code: DCOR3PTT275FM

  • 3-phase SPD with 230V, 25A rating
  • IP20 protection, DIN rail mount
  • Quick response: 25 ns (L-N)
  • Lightning current: 100 kArms (N-PE)
  • Complies with KEMA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
DEHNcord
Application
For protecting low-voltage consumer installations against surges

Electrical

Max. Backup Fuse
25A gG, 40A gG
Nominal Voltage
230V AC
Voltage Protection Level Up
1500V
Max. Discharge Current Imax (8/20µs)
20kA, 40kA
Short Circuit Current Rating
6kA
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
255 V AC, 275 V AC, 350 V DC

Mechanical

Terminal Size
0.2 to 6 mm2

Dimensions & Physical Data

No. of Modules Width
2

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
