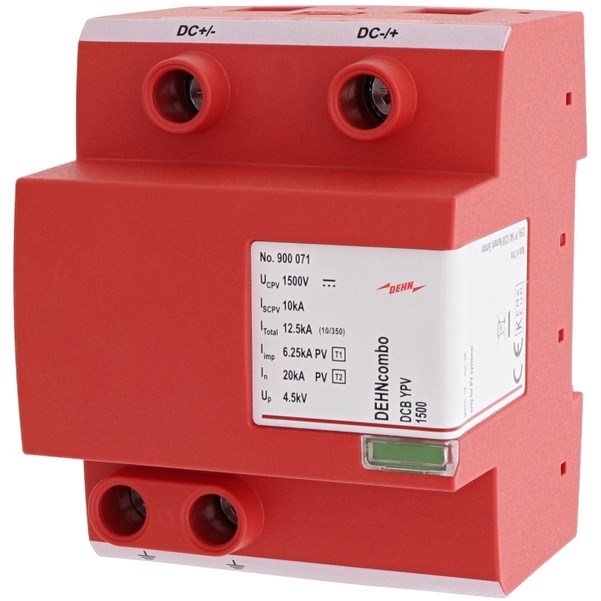

DEHN DCBYPV1500 Combined Arrester 40kA 35mm DIN Rail Mount 72mm W 73mm D 90mm H Thermoplastic IP20

Product Code: DCBYPV1500

  • Handles up to 40 kA surge current
  • IP20 protection for secure installation
  • Fits on 35 mm DIN rail
  • Suitable for up to 1500 VDC PV systems
  • Fast response time of <= 25 ns
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined lightning current and surge arrester
Brand
DEHN
Series
DCB YPV
Application
PV systems

Electrical

Lightning Impulse Current Iimp (10/350µs)
6.25 kA
Voltage Protection Level Up
< 3.8 kV
Max. Discharge Current Imax (8/20µs)
40 kA
Short Circuit Current Rating
10 kA
Nominal Discharge Current Inom (8/20µs)
20 kA
Max. PV Voltage [DC+ -> DC-] (UCPV)
≤ 1200 V

Mechanical

Cross-Sectional Area
35 mm^2 stranded / 25 mm2 flexible
Material
thermoplastic
Mounting Method
35 mm DIN rails

Dimensions & Physical Data

Depth
90mm
Height
73mm
Weight
509 g
Width
72mm

Environmental

Operating Temperature
-40 °C ... +80 °C
IP Rating
IP 20
