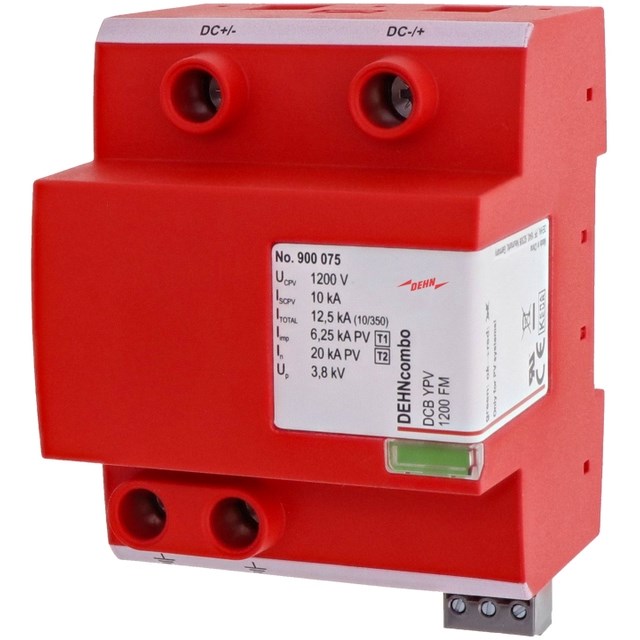

DEHN DCBYPV1200FM Combined Arrester 40kA 35mm DIN Rail Mount 72mm W 73mm D 90mm H Thermoplastic IP20

Product Code: DCBYPV1200FM

  • Protects up to 1200 VDC PV systems
  • Fast response time of <= 25 ns
  • Compact design: 72x90x73 mm
  • Mounts on 35 mm DIN rail
  • IP20 thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Arrester
Brand
DEHN
Series
DEHNcombo
Application
Combined lightning current and surge arrester for use in photovoltaic power supply systems up to 1200 V d.c.; with remote signalling contact.

Electrical

Lightning Impulse Current Iimp (10/350µs)
6.25kA
Voltage Protection Level Up
< 3.8kV
Max. Discharge Current Imax (8/20µs)
40kA
Short Circuit Current Rating
10kA
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
20kA
Max. Continuous Operating Voltage
<= 1200 V

Mechanical

Terminal Size
1.5 to 35 mm2

Dimensions & Physical Data

No. of Modules Width
4

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
