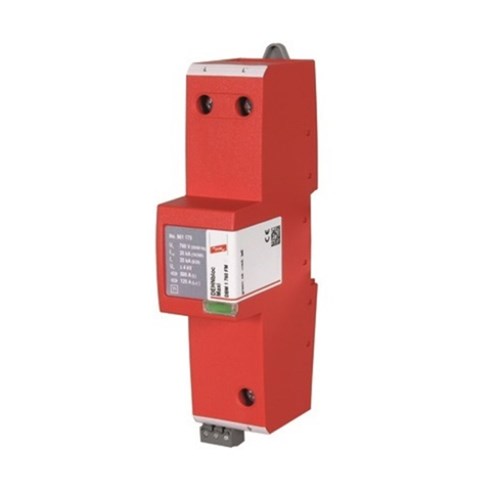

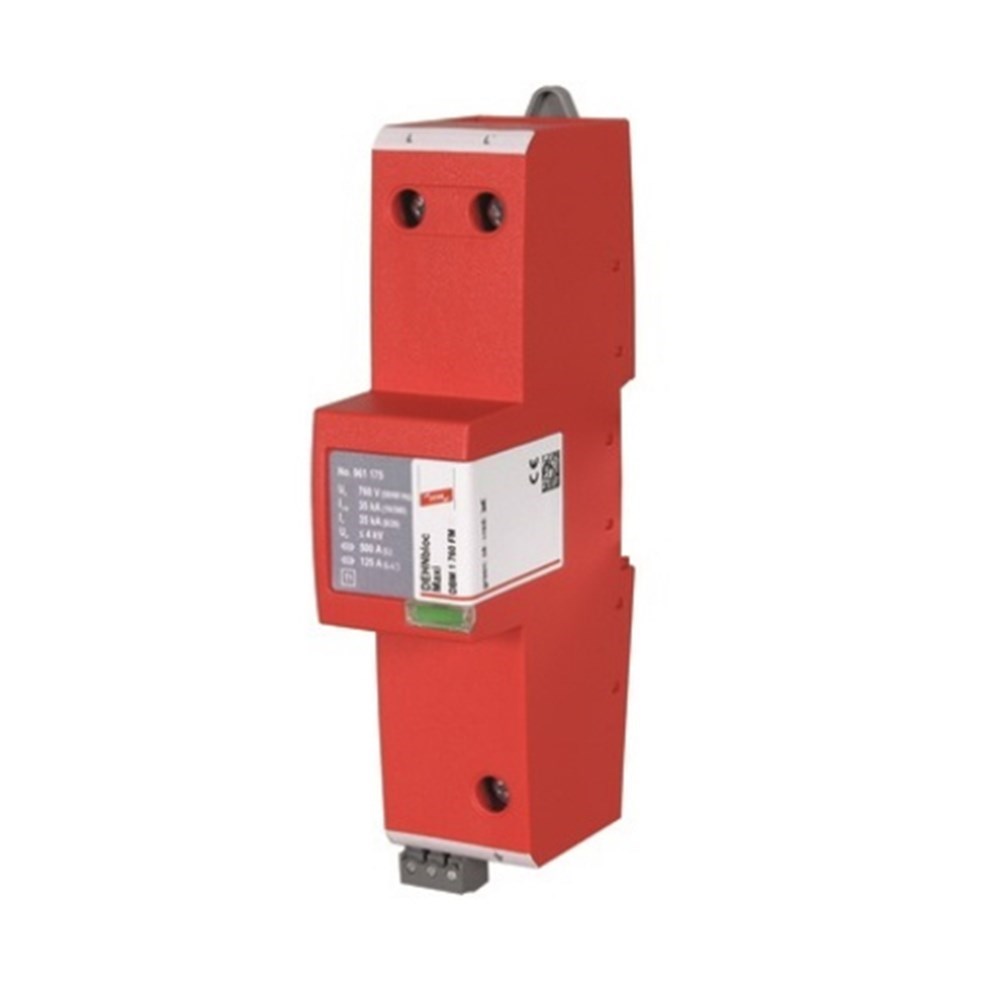

DEHN DBM1760FM Type-1 Lightning Current Arrester 25kA 25kA 690V 36mm W 73mm D 150mm H Thermoplastic IP20

Product Code: DBM1760FM

  • Rated for 690 V and 25 kA current
  • IP20 protection rating
  • Operates from -40 to 80°C
  • Fast response time <= 100 ns
  • Complies with UL, CSA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Lightning Current Arrester
Brand
DEHN
Series
DEHNbloc Maxi 440 / 760
Application
Coordinated lightning current arrester for high voltage levels for protecting low-voltage consumer's installations against surges and even direct lightning strikes.

Electrical

Lightning Impulse Current Iimp (10/350µs)
25kA
Max. Backup Fuse
250A gG
Nominal Voltage
690V AC
Voltage Protection Level Up
4000V
Alarm Contact
Changeover contact
Nominal Discharge Current Inom (8/20µs)
25kA
No. of Poles
1P
Max. Continuous Operating Voltage
760 V AC

Mechanical

Terminal Size
10 to 50 mm2

Dimensions & Physical Data

No. of Modules Width
2

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
