Specifications

Product Type Lightning Current Arrester	Brand DEHN	Series DEHNbloc Maxi 440 / 760
Application Coordinated lightning current arrester for high voltage levels for protecting low-voltage consumer's installations against surges and even direct lightning strikes.

Lightning Impulse Current Iimp (10/350µs) 35kA	Max. Backup Fuse 500A gG	Nominal Voltage 400V AC
Voltage Protection Level Up 2500V	Short Circuit Current Rating 100kA	Nominal Discharge Current Inom (8/20µs) 35kA
No. of Poles 1P	Max. Continuous Operating Voltage 440 V AC

Terminal Size

10 to 50 mm2

No. of Modules Width

Operating Temperature

-40°C to 80°C

IP Rating

IP20

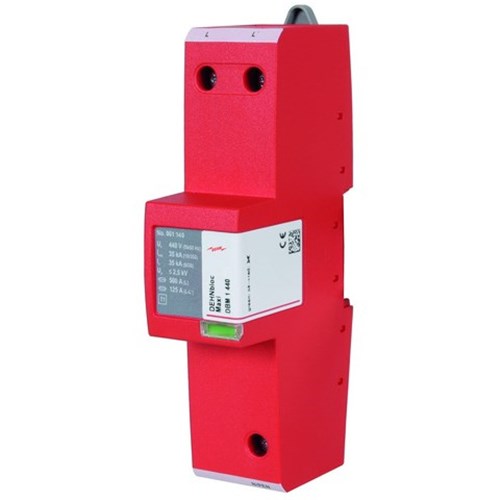

DEHN DBM1440 Lightning Current Arrester 35kA 1-P 35kA 400V 36mm W 73mm D 150mm H Thermoplastic IP20
