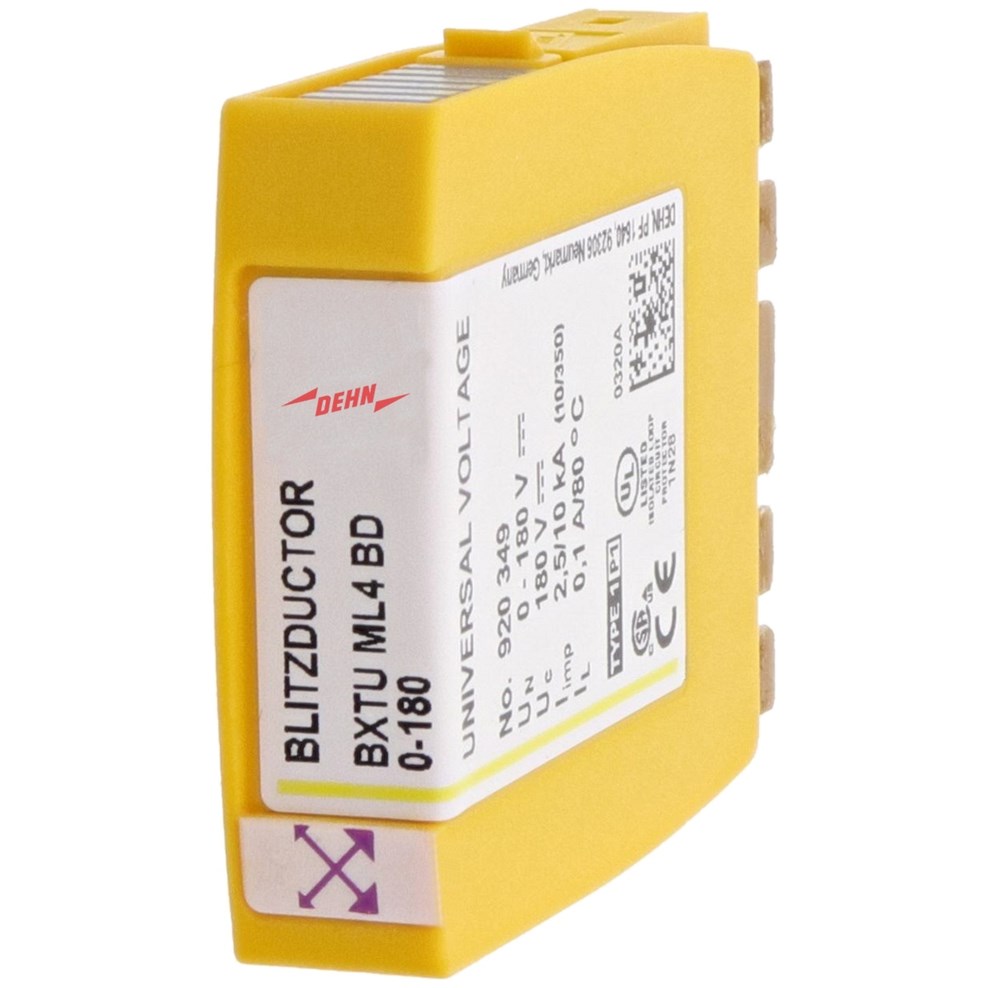

DEHN BXTUML4BD0-180 Surge Arrester With Lifecheck 2.5kA 10kA 4-P 100mA 0-180V 50MHz IP20

Product Code: BXTUML4BD0-180

  • Surge Protection Device, Type 1
  • Voltage range: 0-180 V, current: 100 mA
  • Compact design: 6 mm width, IP20 rated
  • Operates in -40 to 80°C temperature range
  • Compliance with IEC, EN, CSA, UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Arrester Module
Brand
DEHN
Series
BLITZDUCTOR XTU
Application
For the protection of two pairs for galvanically isolated balanced interfaces

Electrical

Lightning Impulse Current Iimp (10/350µs)
10kA
No. of Lines/Pairs
2 pairs
Nominal Current (In)
100 mA
Nominal Voltage
0V to 180V
Voltage Protection Level Up
550V
Nominal Discharge Current Inom (8/20µs)
20kA
Max. Continuous Operating Voltage
127 V AC / 180 V DC

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
