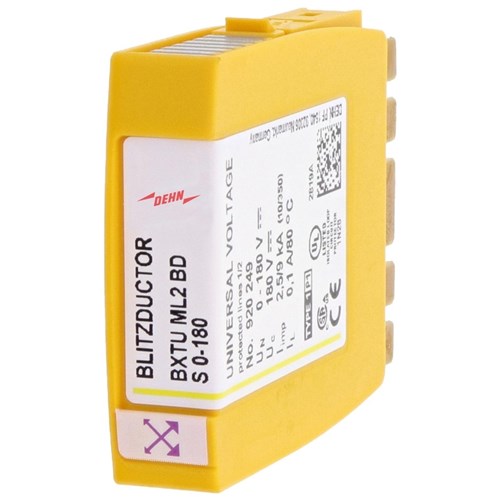

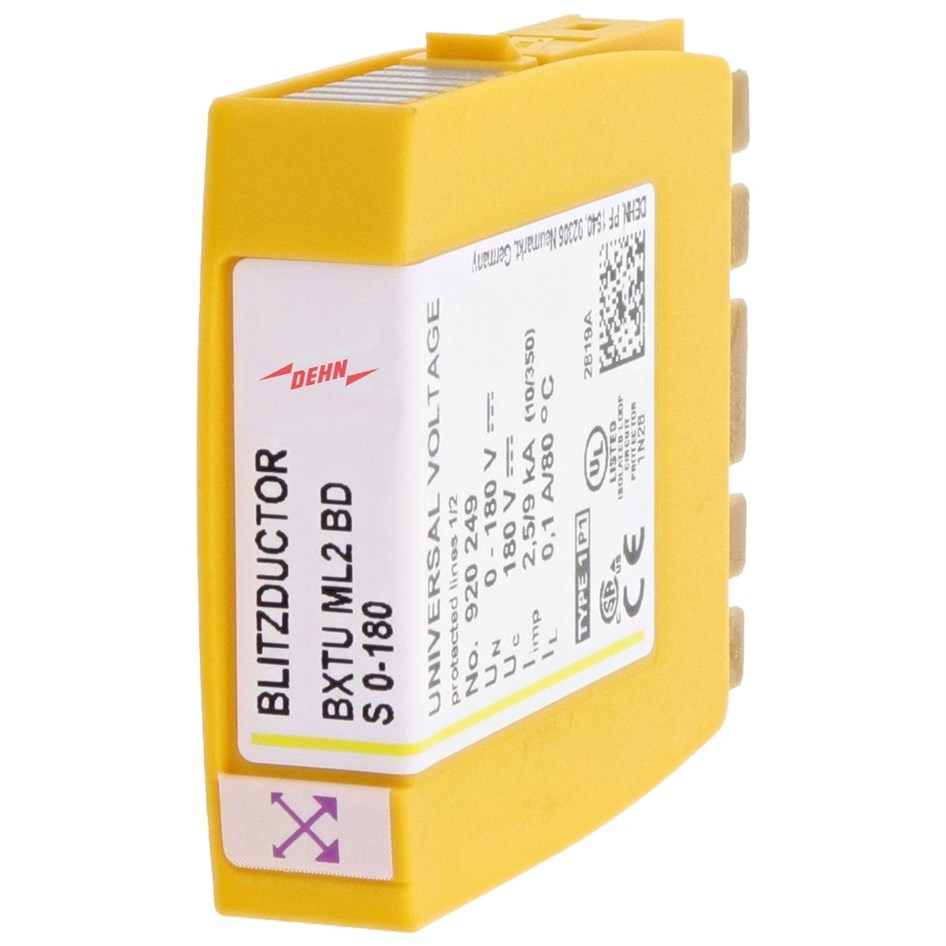

DEHN BXTUML2BDS0-180 Surge Arrester With Lifecheck 2.5kA 9kA 2-P 100mA 0-180V 50MHz IP20

Product Code: BXTUML2BDS0-180

  • Surge protection up to 180V, 100mA
  • Compact size: 6mm wide, 7mm high
  • Operates from -40 to 80°C
  • Meets IEC, EN, CSA, UL standards
  • Lightning impulse current: 2.5kA per line
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Arrester Module
Brand
DEHN
Series
BLITZDUCTOR XTU
Application
For the protection of one pair for galvanically isolated balanced interfaces, with either direct or indirect shield earthing

Electrical

Lightning Impulse Current Iimp (10/350µs)
9kA
No. of Lines/Pairs
1 pair
Nominal Current (In)
100 mA
Nominal Voltage
0V to 180V
Voltage Protection Level Up
550V
Nominal Discharge Current Inom (8/20µs)
20kA
Max. Continuous Operating Voltage
127 V AC / 180 V DC

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
