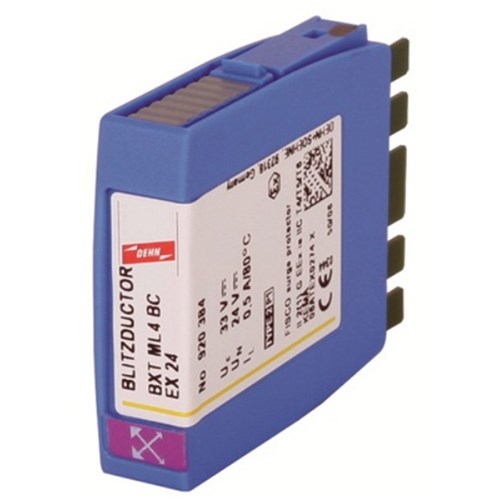

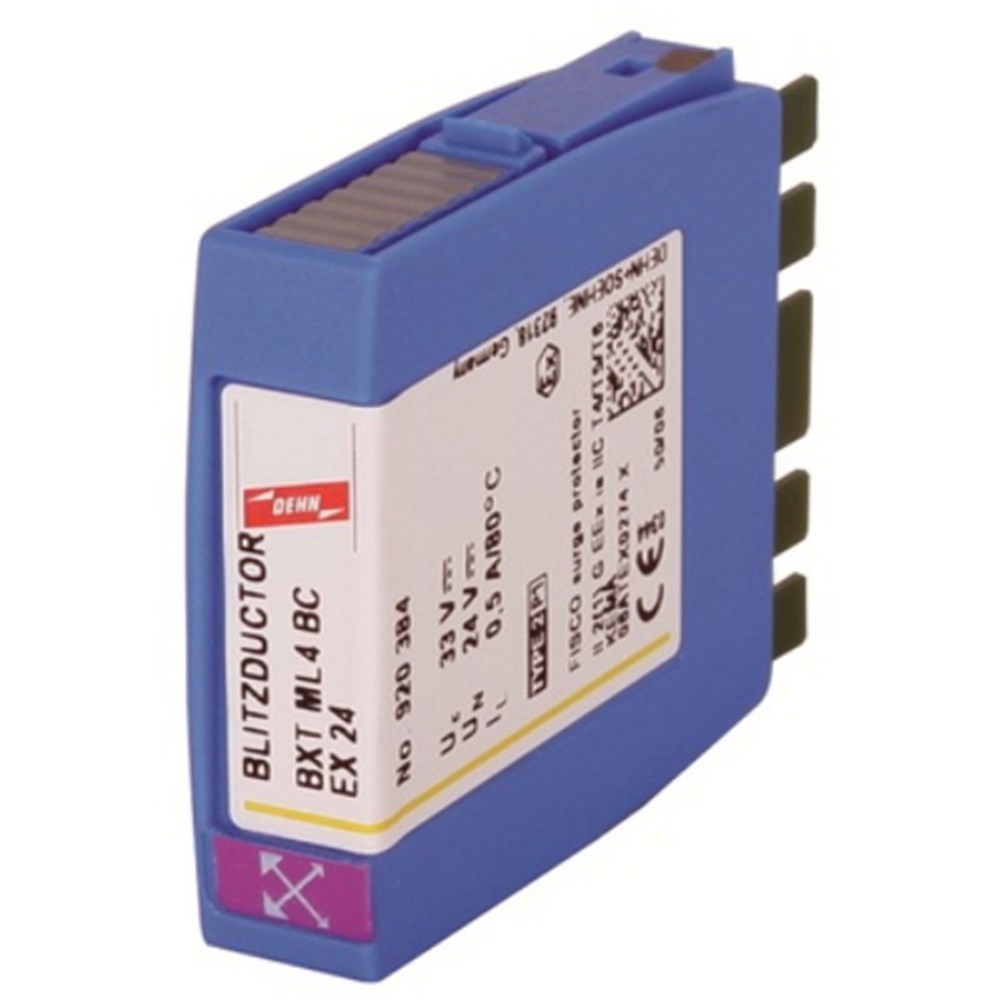

DEHN BXTML4BDEX24 Lightning Current Arrester 4kA 1kA 0.5A 24V 7.7MHz 45mm H

Product Code: BXTML4BDEX24

  • Compact design: 12mm width
  • Operates in -40 to 80°C
  • Complies with IEC 61643-21
  • Lightning impulse current: 4 kA total
  • Suitable for Blitzductor XT
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester Module
Brand
DEHN
Series
BLITZDUCTOR XT
Application
For protecting two pairs of intrinsically safe and galvanically isolated balanced interfaces, 4-20 mA, Profibus PA

Electrical

Lightning Impulse Current Iimp (10/350µs)
4kA
No. of Lines/Pairs
2 pairs
Nominal Voltage
24V
Voltage Protection Level Up
45V
Nominal Discharge Current Inom (8/20µs)
20kA
Max. Continuous Operating Voltage
23 V AC / 33 V DC

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
