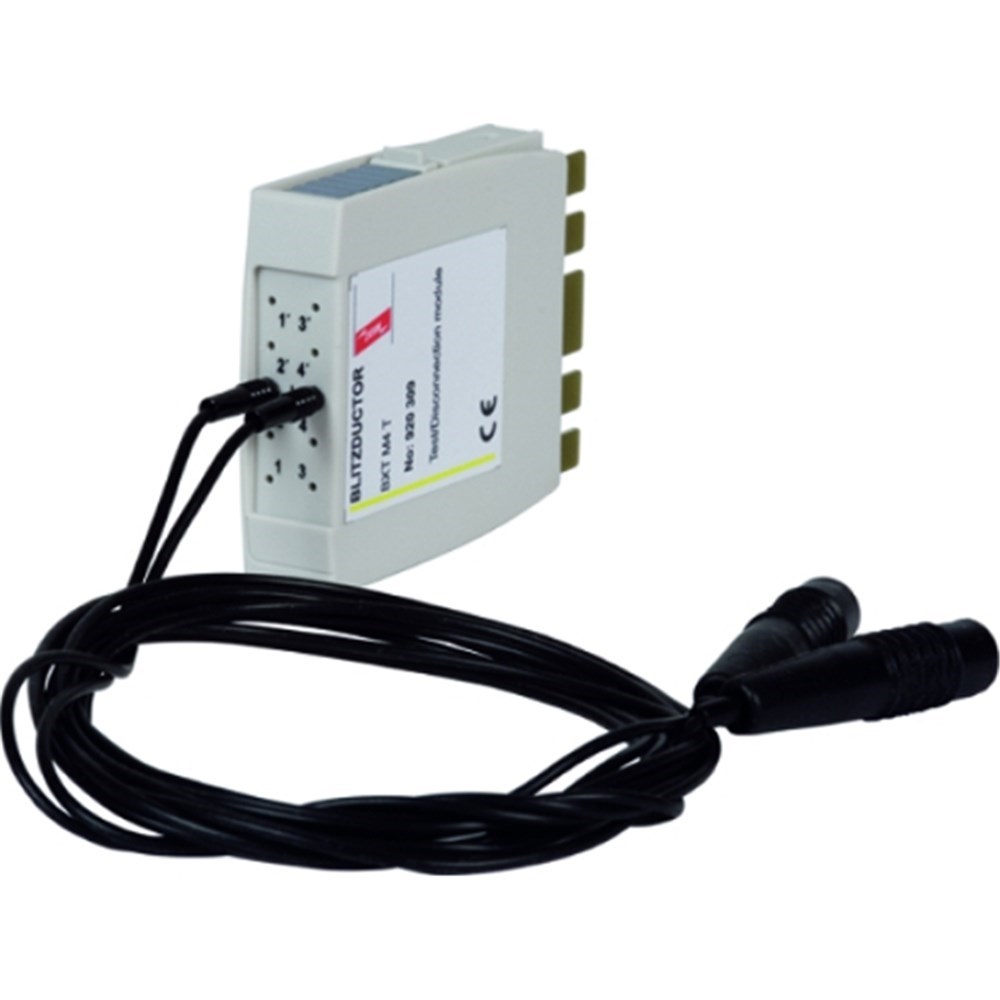

DEHN BXTM4T Test Module 1A 127VAC Plug-In Device Mount 12mm W 51mm D 45mm H Polyamide Grey IP20

Product Code: BXTM4T

  • 127 VAC, 1 A rated for reliable performance
  • IP20 protection for indoor environments
  • Compact dimensions: 12mm W x 45mm H x 51mm D
  • Operates in -40 to 80°C temperature range
  • Designed for Blitzductor XT compatibility
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Test / Disconnection Module
Brand
DEHN
Series
BLITZDUCTOR XT
Application
Plug-in module as test joint for insulation testing without disconnecting the lines, pluggable into BLITZDUCTOR XT base part

Electrical

Nominal Current (In)
1.0 A
Max. Continuous Operating Voltage
127 V AC / 180 V DC

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
