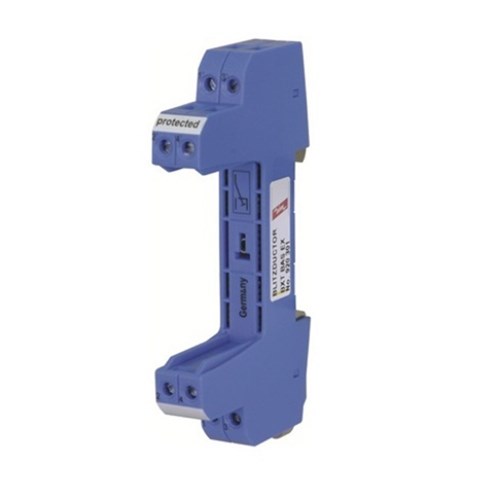

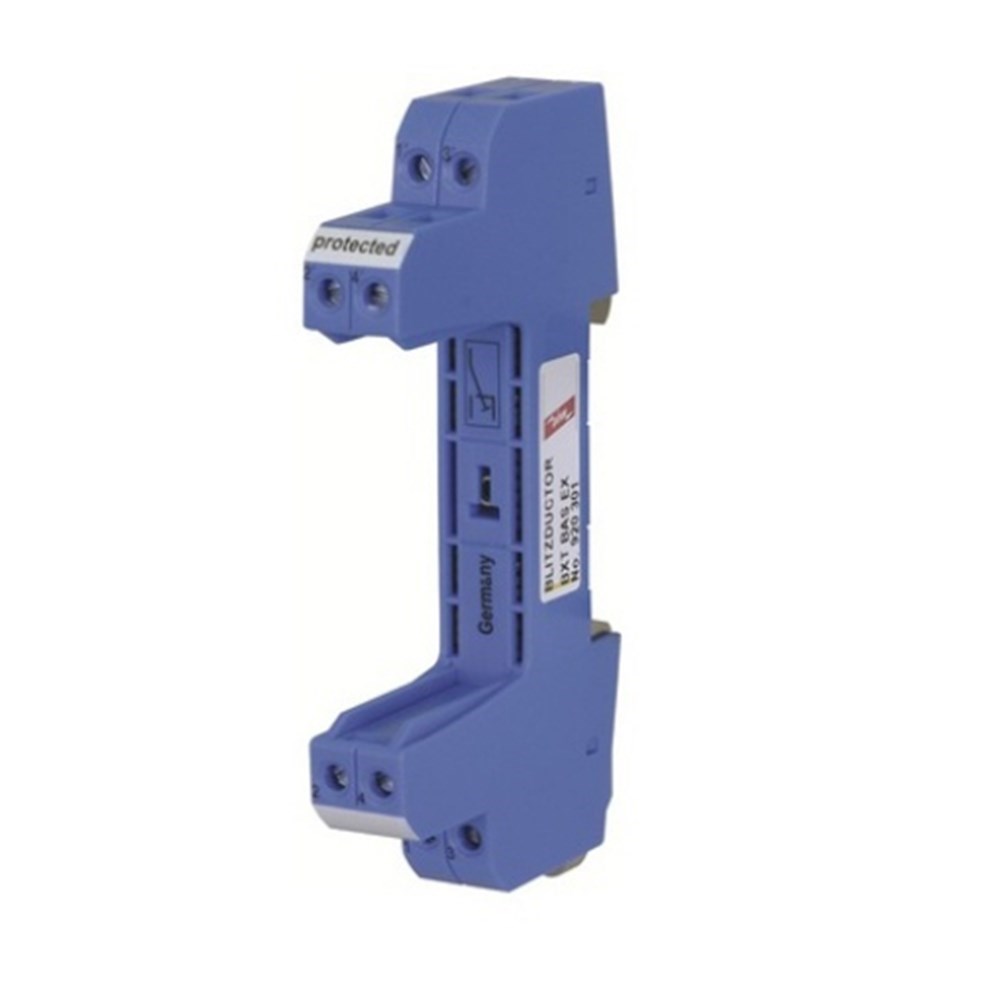

DEHN BXTBASEX Base Part Screw 35mm DIN Rail Mount 12mm W 50mm D 90mm H Polyamide Blue IP20

Product Code: BXTBASEX

  • Screw connection for secure installation
  • IP20 protection rating
  • Fits 35 mm DIN Rail mounting
  • Compact size: 12x90x50 mm
  • Compatible with Blitzductor XT EX
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Base Part
Brand
DEHN
Series
BLITZDUCTOR XT
Application
Base part in the form of a feed-through terminal (Ex (i) version) for BLITZDUCTOR XT Ex (i) surge arrester modules. No signal disconnection when the module is removed. For four single cores or two pairs

Electrical

No. of Lines/Pairs
4 single lines or 2 pairs

Mechanical

Terminal Size
0.08 to 2.5 mm2

Dimensions & Physical Data

Width
12mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
