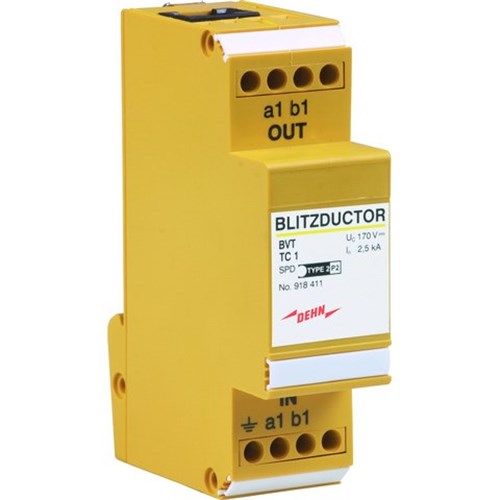

DEHN BVTTC1 Surge Arrester 1kA 2.5kA 5kA 170VDC RJ45 Terminal 35mm DIN Rail IP10

Product Code: BVTTC1

  • Surge protection with 2.5 kA per line capacity
  • RJ45 terminal connection for easy installation
  • Compact design: 27mm wide, mounts on 35mm DIN rail
  • Operates in extreme temps from -40 to 80°C
  • Complies with IEC and EN 61643-21 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
BLITZDUCTOR VT
Application
For the protection of analoge modems in switchgear cabinets, also for ASDL, ISDN Uko, 2 pole, installation width 1.5 TE

Electrical

Nominal Current (In)
200 mA
Nominal Voltage
130V
Voltage Protection Level Up
240V
Nominal Discharge Current Inom (8/20µs)
5kA
Max. Continuous Operating Voltage
170 V DC

Mechanical

Terminal Size
0.08 to 2.5 mm2

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP10

Documents

IPD Product Catalogue V17
