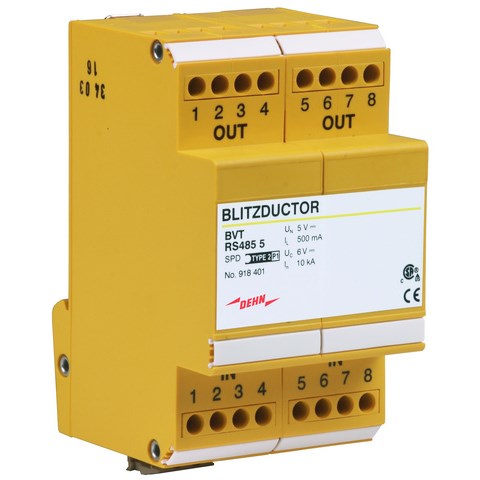

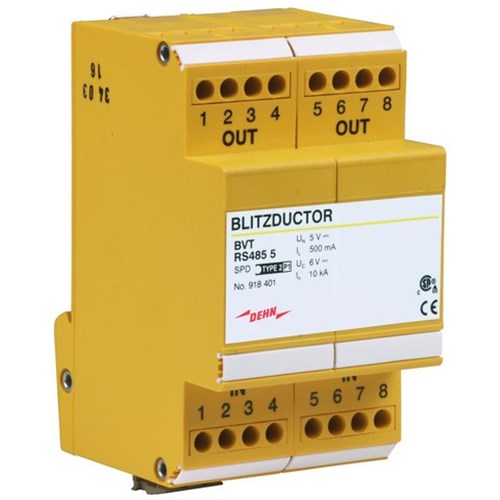

DEHN BVTRS4855 Surge Arrester 0.8kA 10kA 10kA 6VDC Screw 35mm DIN Rail IP20

Product Code: BVTRS4855

  • Surge protection for 6 VDC systems
  • Handles up to 10 kA per line
  • Easy screw connection on DIN Rail
  • Compact size: 54x90x65 mm, IP20 rated
  • Operates in -40 to 80°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
BLITZDUCTOR VT
Application
For the protection of bus interfaces (e.g. RS 485, 422, V.11), direct / indirect shield earthing, 6 pole, installation width 3 TE

Electrical

Nominal Current (In)
500 mA
Nominal Voltage
5V
Voltage Protection Level Up
8.5V
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
6 V DC

Mechanical

Terminal Size
0.08 to 2.5 mm2

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
