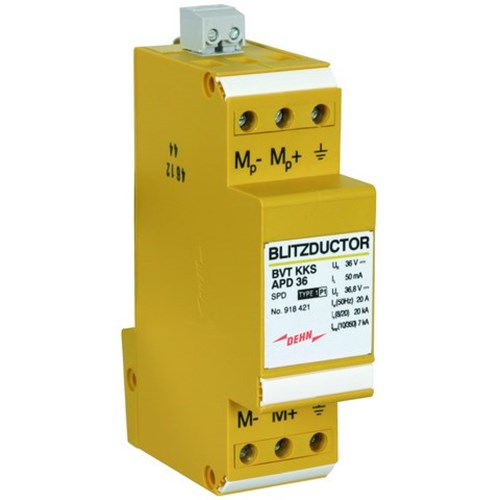

DEHN BVTKKSAPD36 Combined Lightning Current and Surge Arrester 3.5kA 7kA 20kA 40kA 36.8VDC 35mm DIN Rail IP20

Product Code: BVTKKSAPD36

  • 20 kA per line, 40 kA total surge protection
  • Compact design: 27 mm width, fits DIN Rail
  • Operates in -40 to 80°C range
  • IP20 rated thermoplastic housing
  • Complies with IEC & EN 61643-21 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Lightning Current And Surge Arrester
Brand
DEHN
Series
BLITZDUCTOR VT
Application
For the protection of voltage measuring circuits of cathodic corrosion protection systems, with remote signalling contact, 2 pole, installation width 1.5 TE

Electrical

Lightning Impulse Current Iimp (10/350µs)
7kA
Nominal Current (In)
50 mA
Nominal Voltage
36V
Voltage Protection Level Up
48V
Nominal Discharge Current Inom (8/20µs)
40kA
Max. Continuous Operating Voltage
36.8 V DC

Mechanical

Terminal Size
0.5 to 4 mm2

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
