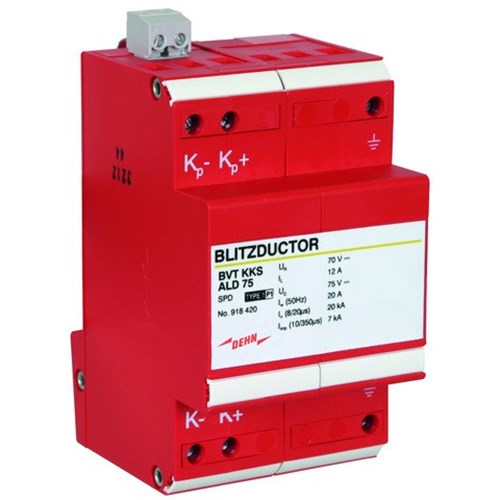

DEHN BVTKKSALD75 Combined Lightning Current and Surge Arrester 3.5kA 7kA 20kA 40kA 75VDC 35mm DIN Rail IP20

Product Code: BVTKKSALD75

  • Surge protection up to 40 kA total
  • Rated for 75 VDC systems
  • Compact size: 54x90x65 mm
  • Operates from -40 to 80°C
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Combined Lightning Current And Surge Arrester
Brand
DEHN
Series
BVT KKS ALD
Application
Protecting the rectifier in the protective circuit

Electrical

Lightning Impulse Current Iimp (10/350µs)
3.5kA per line / 7kA total
Nominal Current (In)
12A
Nominal Voltage
70V
Voltage Protection Level Up
≤ 420V (C2), ≤ 370V (C3)
Nominal Discharge Current Inom (8/20µs)
20kA per line / 40kA total
Max. Continuous Operating Voltage
75 V

Mechanical

Terminal Size
0.5–6 mm² (solid), 0.5–4 mm² (flexible)

Dimensions & Physical Data

Depth
90mm
Height
65mm
Width
54mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
