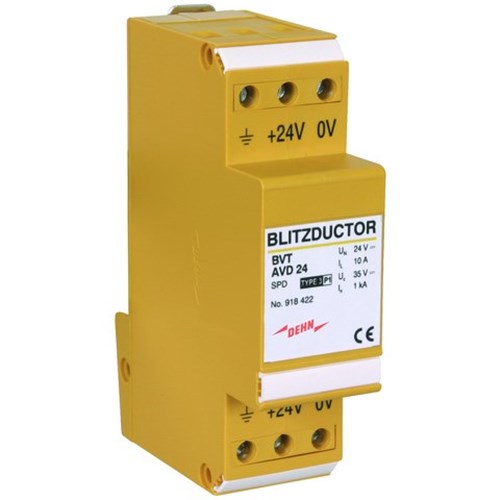

DEHN BVTAVD24 Surge Arrester 1kA 2kA 35VDC 35mm DIN Rail IP20

Product Code: BVTAVD24

  • Rated for 35 VDC, 1 kA per line
  • IP20 protection, thermoplastic build
  • Compact: 27mm wide, mounts on DIN rail
  • Operates in -40 to 80°C range
  • Complies with IEC & EN standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
BLITZDUCTOR VT
Application
Protection to programmable logic controls / PLCs, 2 pole, installation width 1.5 TE

Electrical

Nominal Current (In)
10:00 AM
Nominal Voltage
24 V
Voltage Protection Level Up
50 V
Nominal Discharge Current Inom (8/20µs)
2 kA
Max. Continuous Operating Voltage
35 V DC

Mechanical

Terminal Size
0.5 to 4.0 mm2

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
