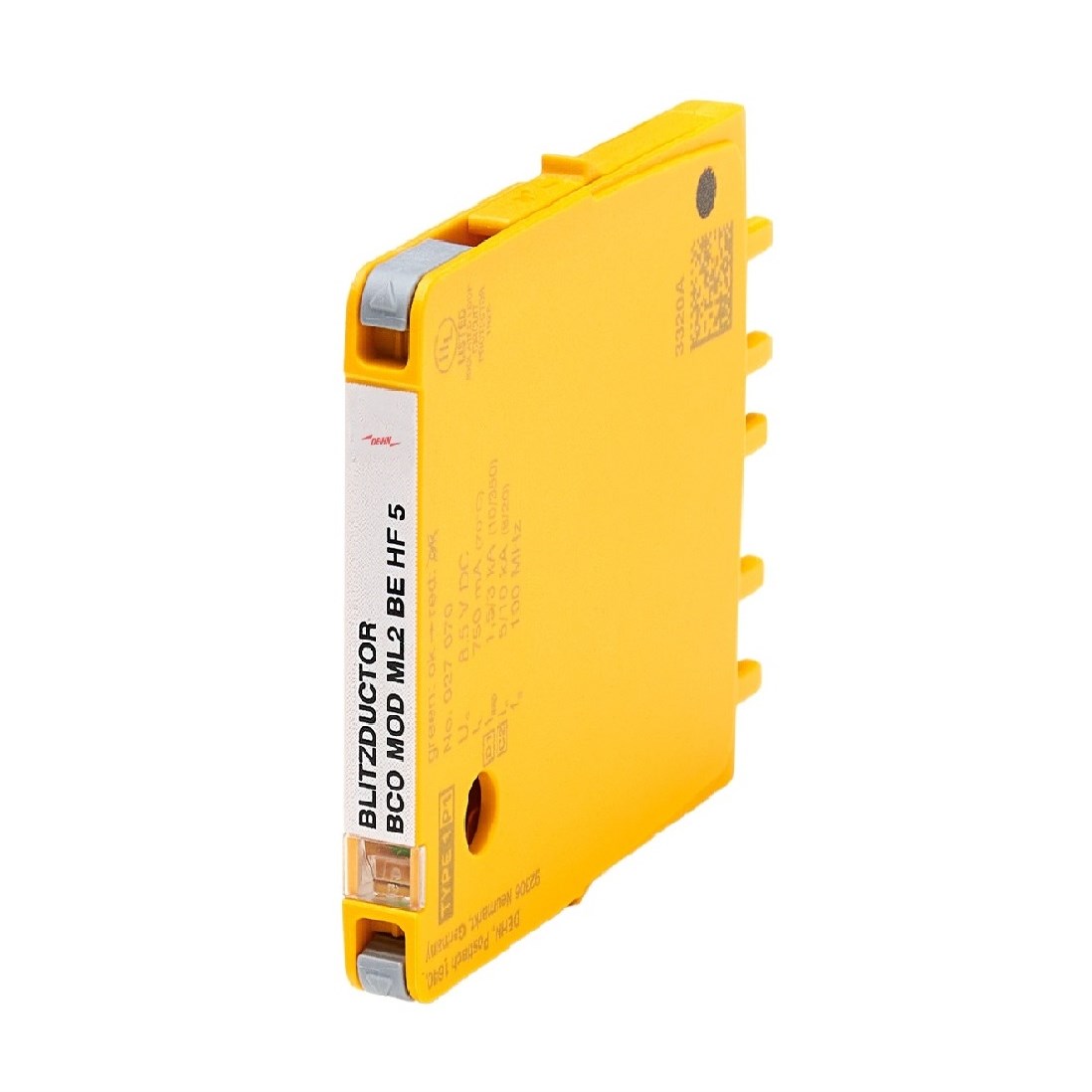

DEHN BCOMODML2BEHF5 Protection Module 3kA 1.5kA 0.75A 6/8.5VAC/DC 89.7mm H IP20

Product Code: BCOMODML2BEHF5

  • Protects signal lines with Type 1 SPD
  • Compact design: 6 mm depth
  • Operates from -40 to 80°C
  • Meets IEC, UL, CSA, ATEX standards
  • Handles lightning impulse current up to 3 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Protection Module
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting two single lines of high-frequency transmissions sharing a common reference potential as well as unbalanced interfaces

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
2 single lines
Nominal Current (In)
750 mA
Nominal Voltage
5V
Voltage Protection Level Up
15V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
6.0 V AC / 8.5 V DC

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
