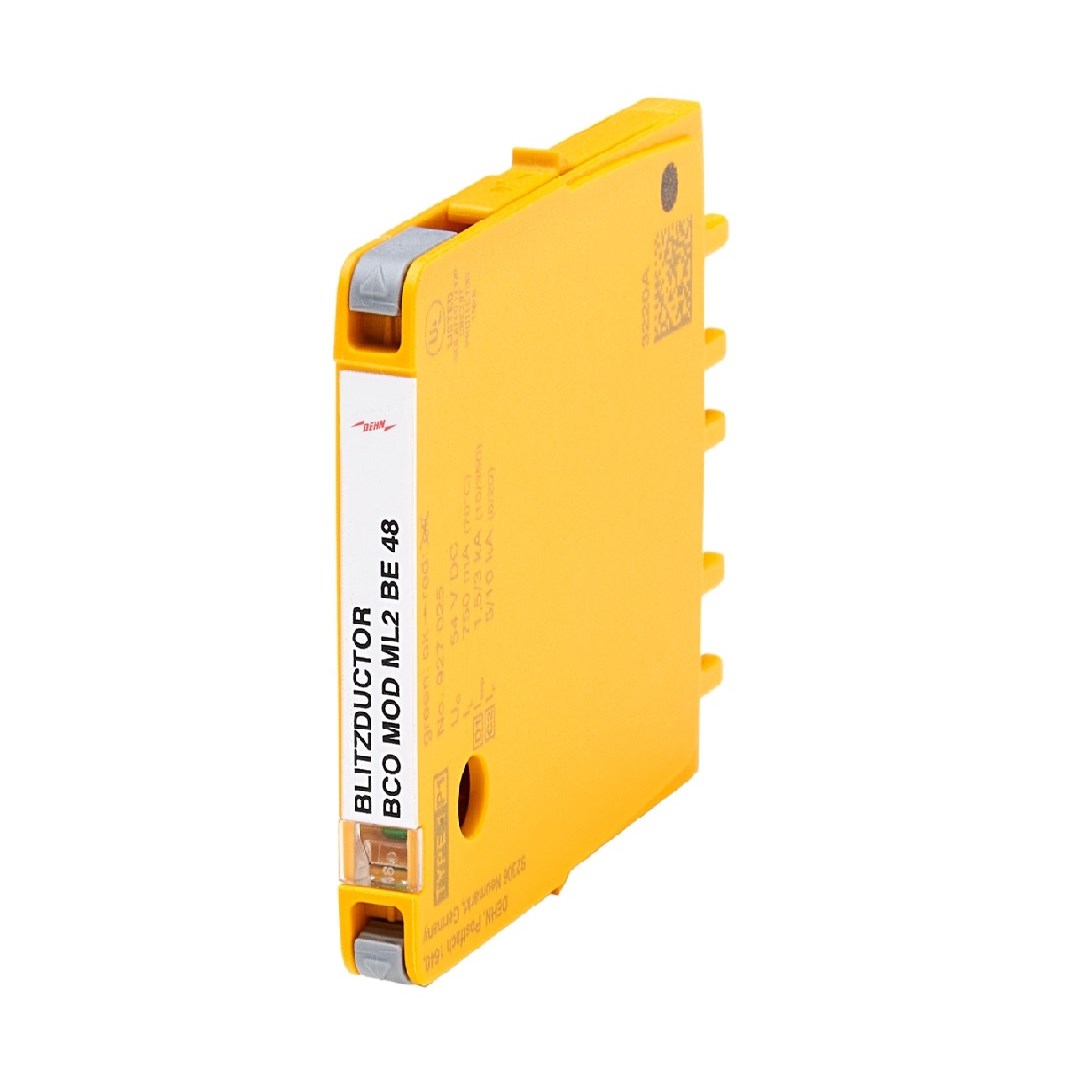

DEHN BCOMODML2BE48 Protection Module 3kA 1.5kA 0.75A 38.1/54VAC/DC 89.7mm H IP20

Product Code: BCOMODML2BE48

  • Protects signal lines with 38.1/54 VAC/VDC
  • Compact design: 69.4mm x 89.7mm x 6mm
  • Operates in -40 to 80°C range
  • Meets IEC, UL, CSA standards
  • Handles lightning currents up to 3 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Protection Module
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting two single lines sharing a common reference potential as well as unbalanced interfaces

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
2 single lines
Nominal Current (In)
750 mA
Nominal Voltage
48V
Voltage Protection Level Up
130V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
38.1 V AC / 54 V DC

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
