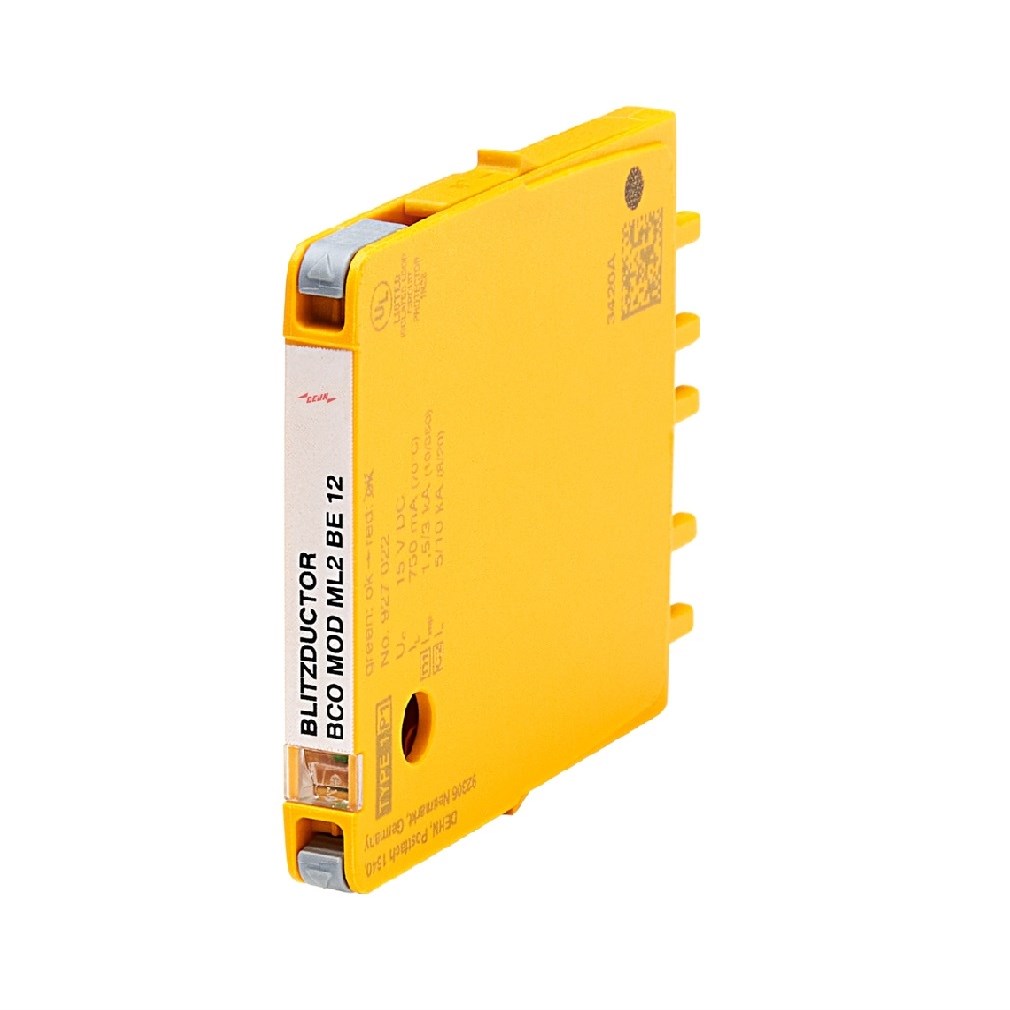

DEHN BCOMODML2BE12 Protection Module 3kA 1.5kA 0.75A 10.6/15VAC/DC 89.7mm H IP20

Product Code: BCOMODML2BE12

  • Protects signal lines up to 15 VAC/VDC
  • Compact size: 69.4 mm x 89.7 mm x 6 mm
  • Operates in extreme temps: -40 to 80°C
  • Meets IEC, UL, and ATEX standards
  • Handles lightning impulse current of 3 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Protection Module
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting two single lines sharing a common reference potential as well as unbalanced interfaces

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
2 single lines
Nominal Current (In)
750 mA
Nominal Voltage
12V
Voltage Protection Level Up
38V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
10.6 V AC / 15 V DC

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
