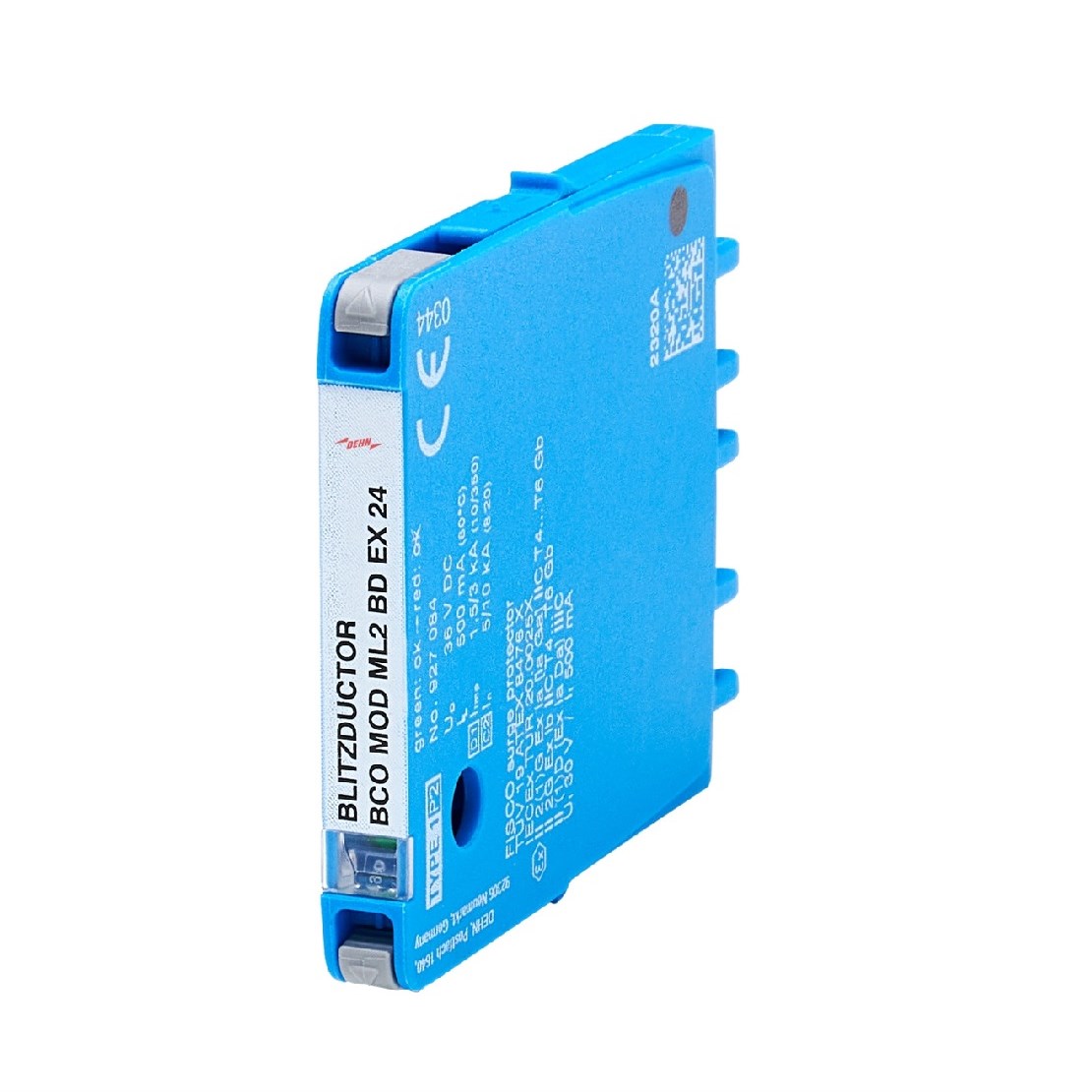

DEHN BCOMODML2BDEX24 Protection Module 3kA 1.5kA 0.5A 25.4/36VAC/DC 89.7mm H

Product Code: BCOMODML2BDEX24

  • Protects signal lines at 25.4/36 VAC/VDC
  • Compact design: 69.4x89.7x6 mm
  • Operates in -40 to 80°C range
  • Meets IEC, ATEX, and SIL standards
  • Handles lightning impulse up to 3 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Protection Module
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting one pair of intrinsically safe measuring circuits and bus systems

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
1 pair
Nominal Current (In)
500 mA
Nominal Voltage
24V
Voltage Protection Level Up
48V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
25.4 V AC / 36 V DC

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
