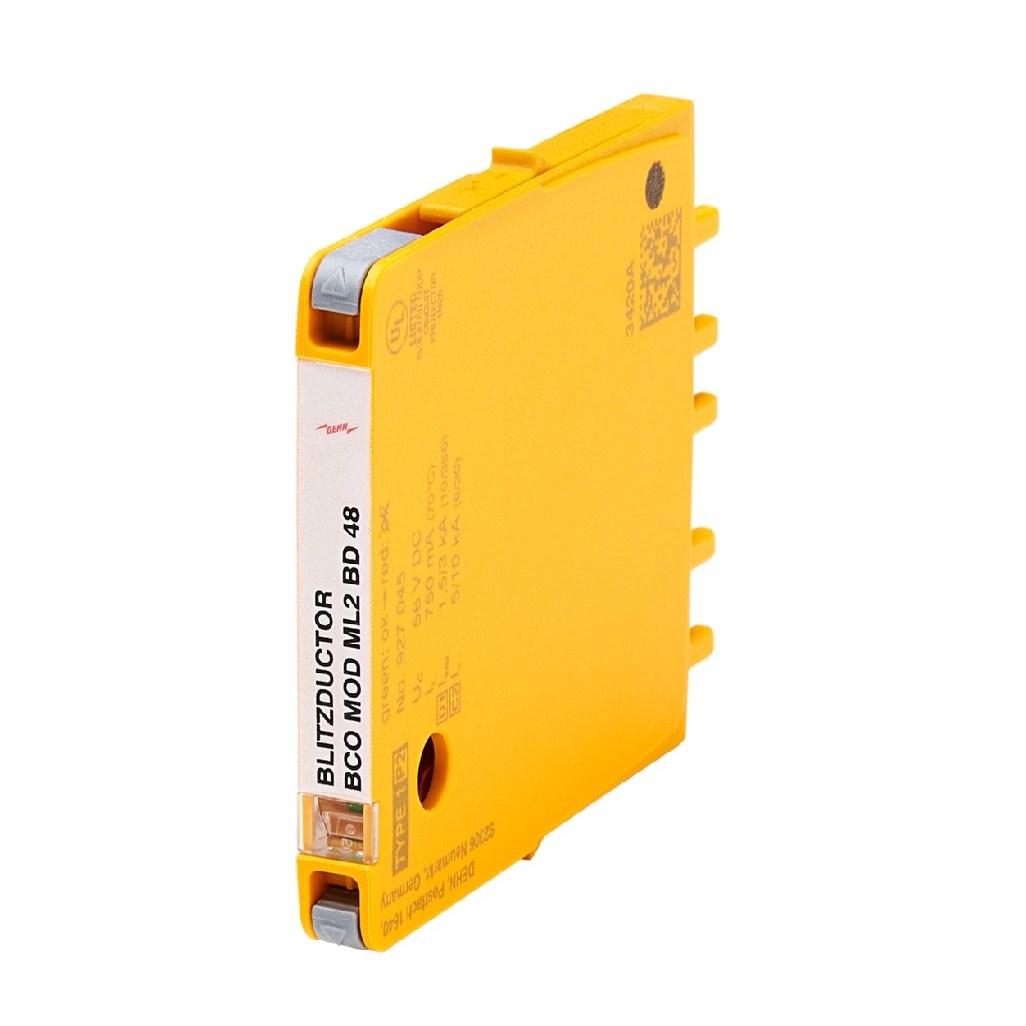

DEHN BCOMODML2BD48 Protection Module 3kA 1.5kA 0.75A 38.1/56VAC/DC 89.7mm H IP20

Product Code: BCOMODML2BD48

  • Protects signal lines up to 56 VAC/VDC
  • Compact size: 6 mm depth, easy to install
  • Operates in extreme temps: -40 to 80°C
  • Meets IEC, UL, CSA, ATEX standards
  • Lightning impulse current of 3 kA total
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Protection Module
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting one pair of unearthed balanced interfaces

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
1 pair
Nominal Current (In)
750 mA
Nominal Voltage
48V
Voltage Protection Level Up
70V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
38.1 V AC / 56 V DC

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
