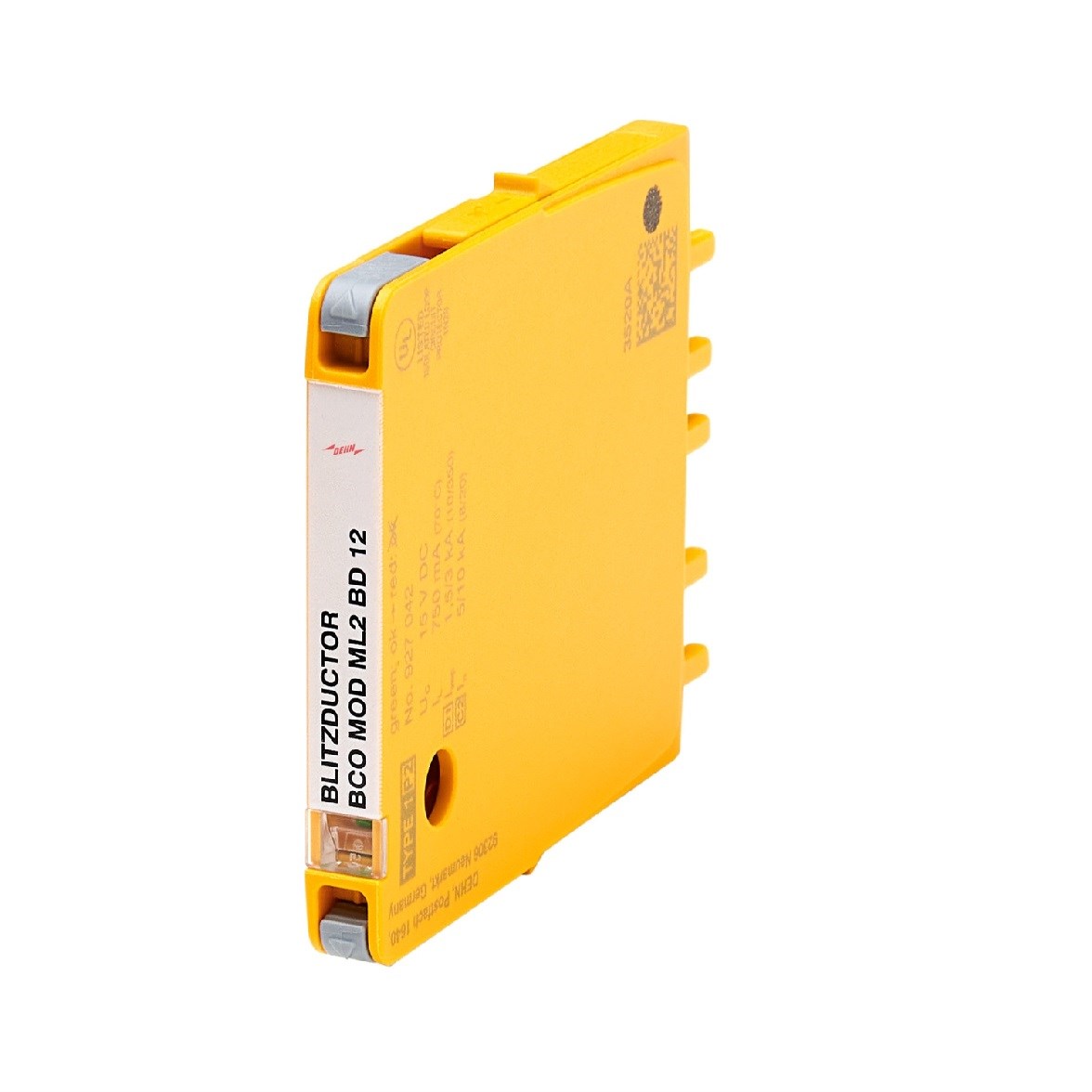

DEHN BCOMODML2BD12 Protection Module 3kA 1.5kA 0.75A 10.6/15VAC/DC 89.7mm H IP20

Product Code: BCOMODML2BD12

  • Protects signal lines with IP20 rating
  • Operates in -40 to 80°C temperature range
  • Complies with IEC, UL, CSA, ATEX standards
  • Handles up to 3 kA lightning impulse current
  • Compact design: 69.4mm W x 89.7mm H x 6mm D
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Protection Module
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting one pair of unearthed balanced interfaces

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
1 pair
Nominal Current (In)
750 mA
Nominal Voltage
12V
Voltage Protection Level Up
20V
Max. Discharge Current Imax (8/20µs)
20kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
10.6 V AC / 15 V DC

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20
