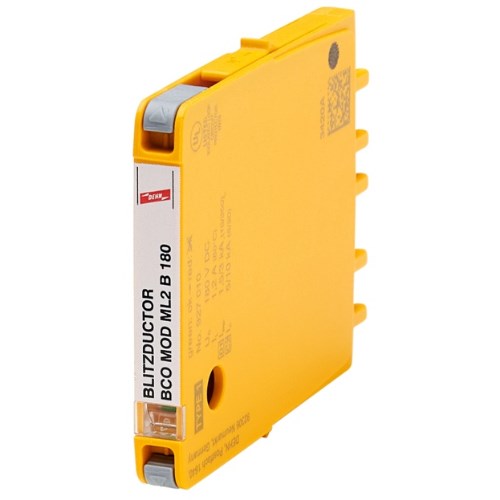

DEHN BCOMODML2B180 Protection Module 3kA 1.5kA 1.2A 127/180VAC/DC 89.7mm H IP20

Product Code: BCOMODML2B180

  • Compact design: 6 mm depth
  • High protection: IP20 rated
  • Wide temp range: -40 to 80°C
  • Complies with IEC, UL, CSA standards
  • Handles impulse current up to 3 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Protection Module
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting two single lines for lightning equipotential bonding as well as indirect earthing of shielded cables

Electrical

Lightning Impulse Current Iimp (10/350µs)
3kA
No. of Lines/Pairs
2 single lines
Nominal Current (In)
1.2 A
Nominal Voltage
180V
Voltage Protection Level Up
950V
Max. Discharge Current Imax (8/20µs)
10kA
Nominal Discharge Current Inom (8/20µs)
10kA
Max. Continuous Operating Voltage
127 V AC / 180 V DC

Dimensions & Physical Data

Width
6mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
