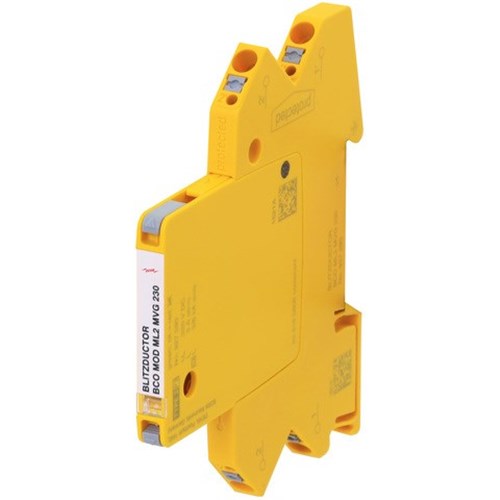

DEHN BCOML2MVG230 Modular Surge Arrester 0.5kA 3A 250/320VAC/DC Push-In 35mm DIN Rail IP20

Product Code: BCOML2MVG230

  • Surge protection device for 250/320 VAC/VDC
  • Compact design: 6 mm depth, yellow polyamide
  • Easy push-in connection, IP20 protection
  • Mounts on standard 35 mm DIN rail
  • Wide operating temp: -40 to 80°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Surge Arrester
Brand
DEHN
Series
BLITZDUCTORconnect
Application
For protecting 2 lines of stranded signal interfaces with a nominal voltage of 230 V AC

Electrical

Lightning Impulse Current Iimp (10/350µs)
0.5 kA
No. of Lines/Pairs
2 lines
Nominal Current (In)
3:00 AM
Nominal Voltage
230 V
Voltage Protection Level Up
1100 V
Nominal Discharge Current Inom (8/20µs)
6 kA
Max. Continuous Operating Voltage
250 V AC / 320 V DC

Mechanical

Terminal Size
0.2 to 2.5 mm2

Dimensions & Physical Data

Width
6 mm

Environmental

Operating Temperature
-40°C to 80°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
